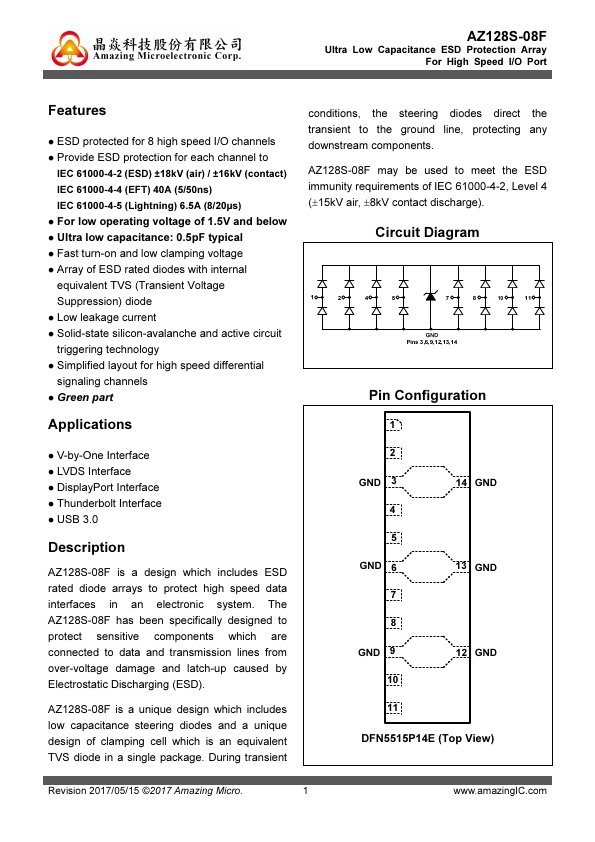

Features ESD protected for 8 high speed I/O channels Provide ESD protection for each channel to IEC 61000-4-2 (ESD) ±18k V (air) / ±16k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 6.5A (8/20µs) For low operating voltage of 1.5V and below Ultra low capacitance: 0.5p F typical Fast turn-on and low clamping voltage Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode Low leakage current Solid-state silicon-avalanche and active circuit triggering technology Simplified layout for high speed differential signaling channels Green part Applications V-by-One Interface LVDS Interface Display Port Interface Thunderbolt Interface USB 3.0 Description AZ128S-08F is a design which includes ESD rated diode arrays to protect high speed data interfaces in an electronic system. The AZ128S-08F has been specifically designed to protect sensitive ponents which are connected to data and transmission lines from over-voltage damage and latch-up...
