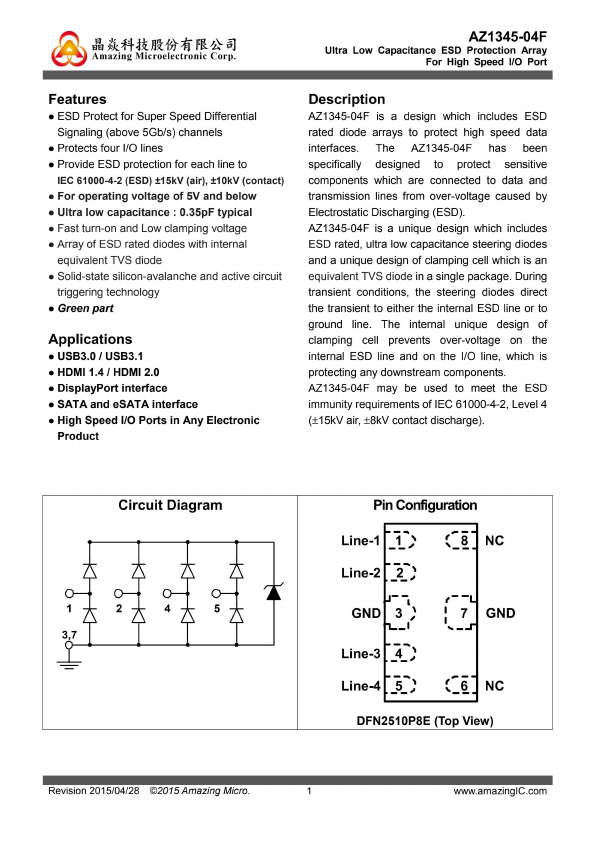

FEATURES
ESD Protect for Super Speed Differential Signaling (above 5Gb/s) channels Protects four I/O lines Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±15kV (air), ±10kV (contact) For operating voltage of 5V and below Ultra low capacitance : 0.35pF typical Fast turn-on and Low clamping voltage Array of ESD rated diodes with internal equivalent TVS diode Solid-state silicon-avalanche and active circuit triggering technology Green part APPLICATIONS
USB3.0 / USB3.1 HDMI 1.4 / HDMI 2.0 DisplayPort interface SATA and eSATA interface High Speed I/O Ports in Any Electronic Product DESCRIPTION
During transient conditions, the steering diodes direct the transient to either the internal ESD line or to ground line. The internal unique design of clamping cell prevents over-voltage on the internal ESD line and on the I/O line, which is protecting any downstream components. AZ1345-04F may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).
