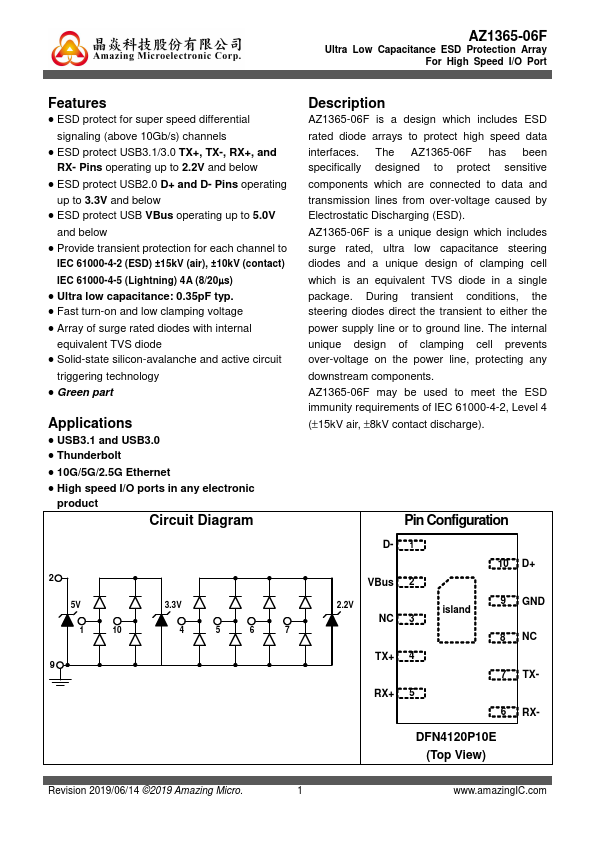

AZ1365-06F
Features
- ESD protect for super speed differential signaling (above 10Gb/s) channels
- ESD protect USB3.1/3.0 TX+, TX-, RX+, and RX- Pins operating up to 2.2V and below
- ESD protect USB2.0 D+ and D- Pins operating up to 3.3V and below
- ESD protect USB VBus operating up to 5.0V and below
- Provide transient protection for each channel to
IEC 61000-4-2 (ESD) ±15k V (air), ±10k V (contact) IEC 61000-4-5 (Lightning) 4A (8/20µs)
- Ultra low capacitance: 0.35p F typ.
- Fast turn-on and low clamping voltage
- Array of surge rated diodes with internal equivalent TVS diode
- Solid-state silicon-avalanche and active circuit triggering technology
- Green part
Applications
- USB3.1 and USB3.0
- Thunderbolt
- 10G/5G/2.5G Ethernet
- High speed I/O ports in any electronic product
Circuit Diagram
5V
3.3V
Description
AZ1365-06F is a design which includes ESD rated diode arrays to protect high speed data interfaces. The AZ1365-06F has been specifically designed to protect...
