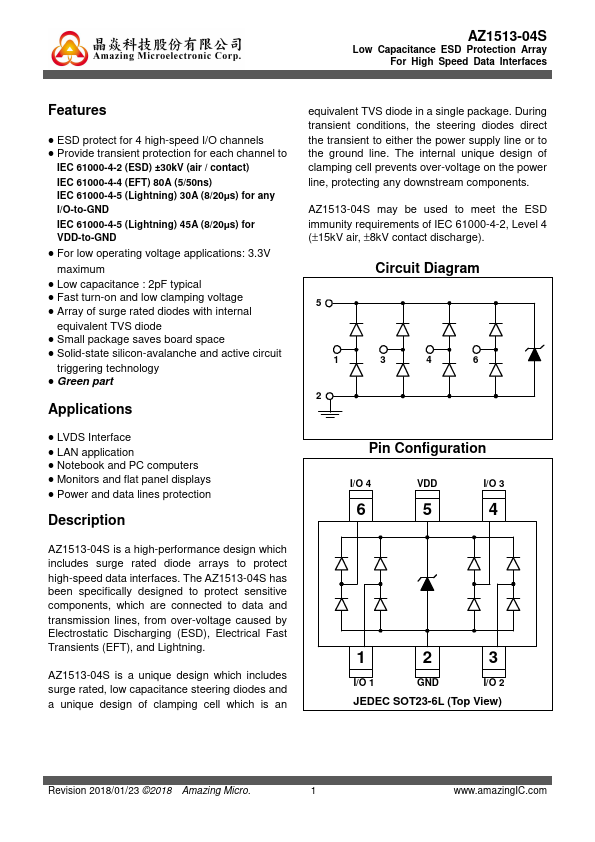

AZ1513-04S
Features
ESD protect for 4 high-speed I/O channels Provide transient protection for each channel to
IEC 61000-4-2 (ESD) ±30k V (air / contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 30A (8/20µs) for any I/O-to-GND IEC 61000-4-5 (Lightning) 45A (8/20µs) for VDD-to-GND
For low operating voltage applications: 3.3V maximum Low capacitance : 2p F typical Fast turn-on and low clamping voltage Array of surge rated diodes with internal equivalent TVS diode Small package saves board space Solid-state silicon-avalanche and active circuit triggering technology Green part
Applications equivalent TVS diode in a single package. During transient conditions, the steering diodes direct the transient to either the power supply line or to the ground line. The internal unique design of clamping cell prevents over-voltage on the power line, protecting any downstream ponents.
AZ1513-04S may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15k V air, ±8k V contact...
