Amazing Microelectronic AZ1515-04S

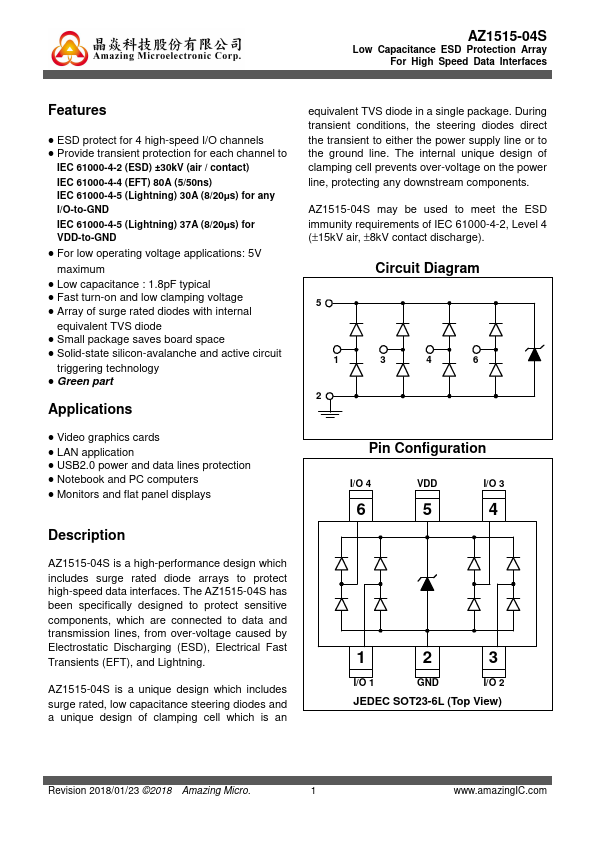

AZ1515-04S is a high-performance design which includes surge rated diode arrays to protect high-speed data interfaces. The AZ1515-04S has been specifically designed to protect sensitive components, which are connected to data and transmission lines, from over-voltage caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), and Lightning. AZ1515-04S is a unique design which includes surge rated, low capacitance steering diodes and a unique design of clamping cell which is an 1 2 3 I/O 1 GND I/O 2 JEDEC SOT23-6L (Top View) Revision 2018/01/23 ©2018 Amazing Micro.

Part No.	AZ1515-04S
Datasheet	AZ1515-04S Download
Manufacturer	Amazing Microelectronic
Description	Low Capacitance ESD Protection Array For High Speed Data Interfaces
Buy	Stock & Price

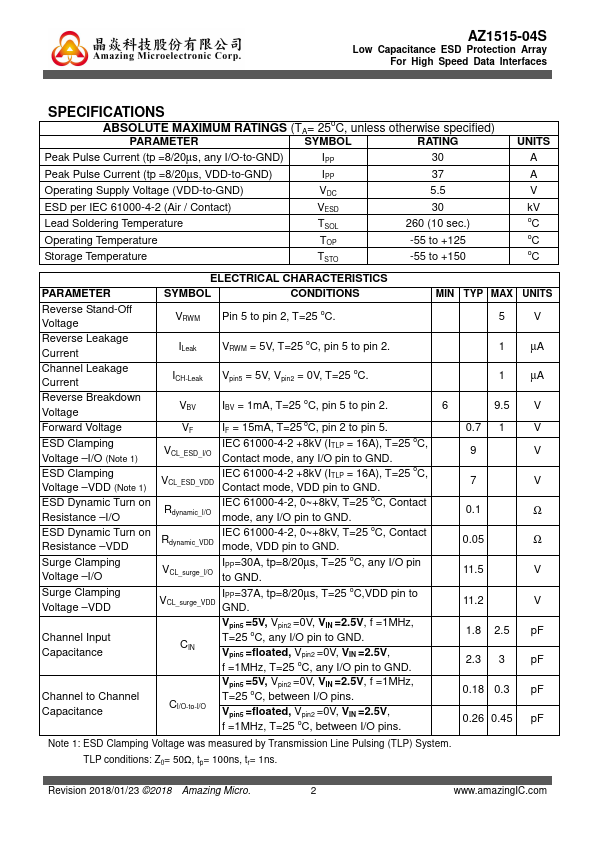

FEATURES

ESD protect for 4 high-speed I/O channels Provide transient protection for each channel to IEC 61000-4-2 (ESD) ±30kV (air / contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 30A (8/20µs) for any I/O-to-GND IEC 61000-4-5 (Lightning) 37A (8/20µs) for VDD-to-GND For low operating voltage applications: 5V maximum Low capacitance : 1.8pF typical Fast turn-on and low clamping voltage Array of surge rated diodes with internal equivalent TVS diode Small package saves board space Solid-state silicon-avalanche and active circuit triggering technology Green part

APPLICATIONS

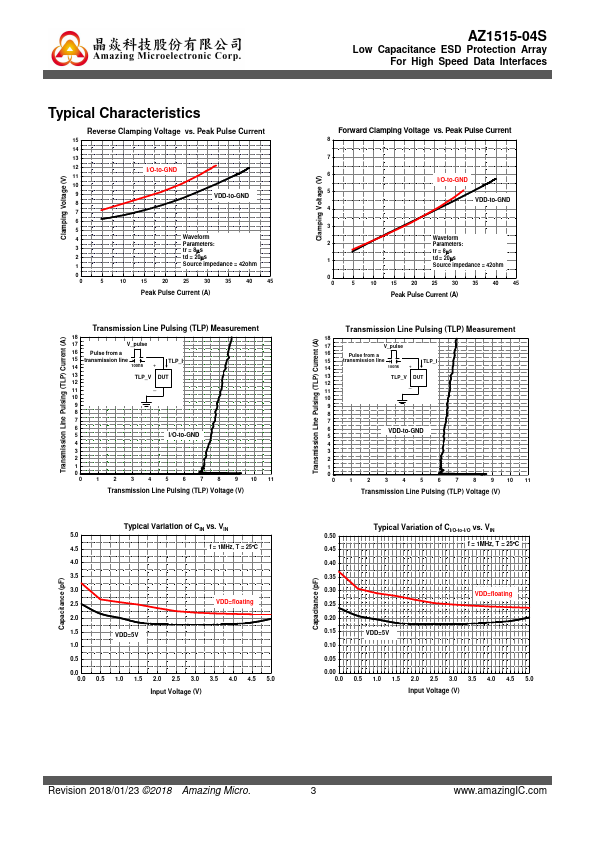

equivalent TVS diode in a single package. During transient conditions, the steering diodes direct the transient to either the power supply line or to the ground line. The internal unique design of clamping cell prevents over-voltage on the power line, protecting any downstream components. AZ1515-04S may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).
