Amazing Microelectronic AZ1603-01L

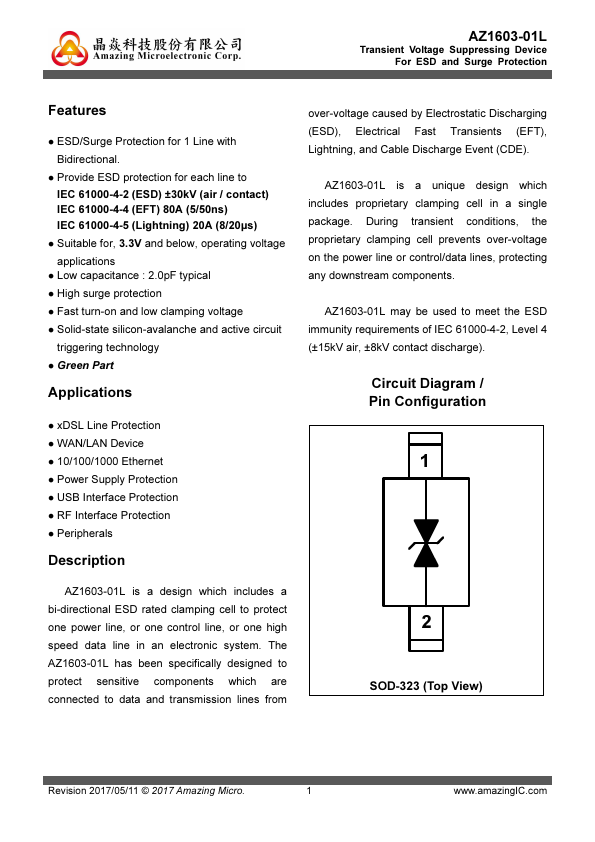

AZ1603-01L is a unique design which includes proprietary clamping cell in a single package. The AZ1603-01L has been specifically designed to protect sensitive components which are connected to data and transmission lines from SOD-323 (Top View) Revision 2017/05/11 © 2017 Amazing Micro. Circuit Diagram / Pin Configuration AZ1603-01L is a design which includes a bi-directional ESD rated clamping cell to protect one power line, or one control line, or one high speed data line in an electronic system.

Part No.	AZ1603-01L
Datasheet	AZ1603-01L Download
Manufacturer	Amazing Microelectronic
Description	Transient Voltage Suppressing Device For ESD and Surge Protection
Buy	Stock & Price

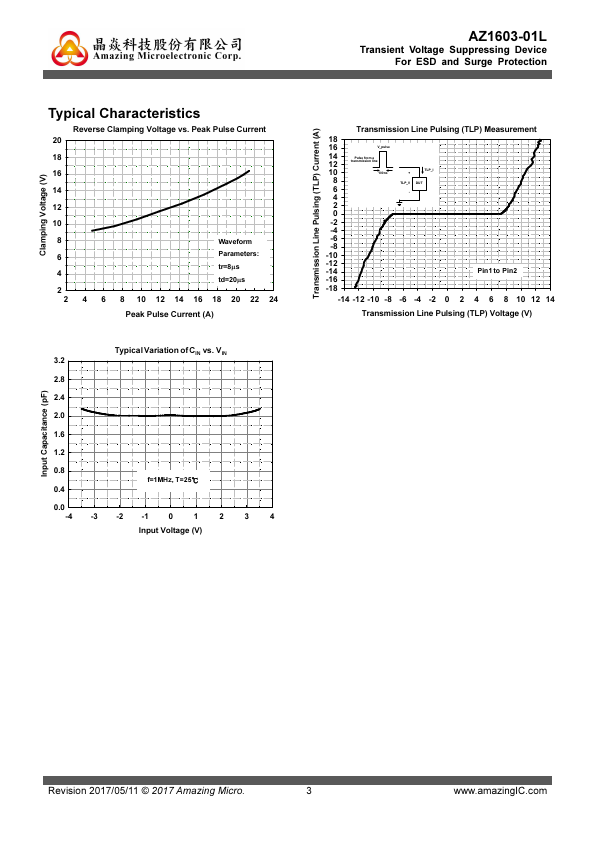

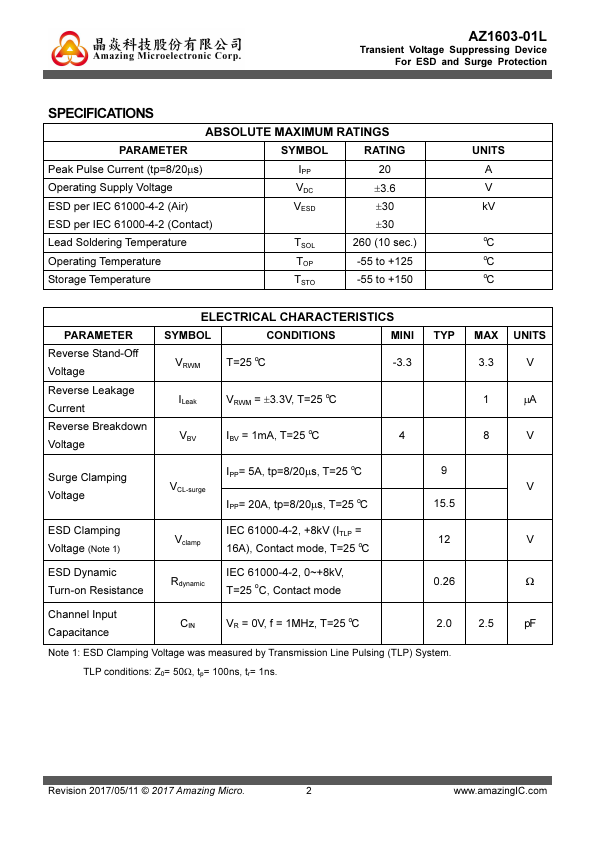

FEATURES

ESD/Surge Protection for 1 Line with Bidirectional. Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±30kV (air / contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 20A (8/20µs) Suitable for, 3.3V and below, operating voltage applications Low capacitance : 2.0pF typical High surge protection Fast turn-on and low clamping voltage Solid-state silicon-avalanche and active circuit triggering technology Green Part

APPLICATIONS

xDSL Line Protection WAN/LAN Device 10/100/1000 Ethernet Power Supply Protection USB Interface Protection RF Interface Protection Peripherals

DESCRIPTION

over-voltage caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), Lightning, and Cable Discharge Event (CDE). During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream components. AZ1603-01L may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).
