| Part number | AZ1613-01L |
|---|---|
| Datasheet | AZ1613-01L-AmazingMicroelectronic.pdf |
| File Size | 229.10 KB |
| Manufacturer | Amazing Microelectronic |
| Description | Transient Voltage Suppressing Device For ESD and Surge Protection |
|
|

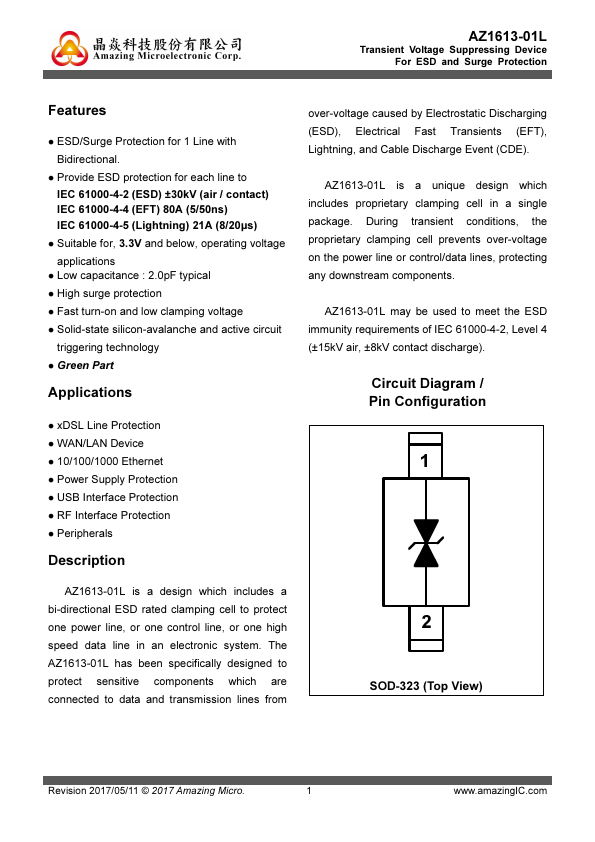

over-voltage caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), Lightning, and Cable Discharge Event (CDE). AZ1613-01L is a unique design which includes proprietary clamping cell in a single package. During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream ponents.
