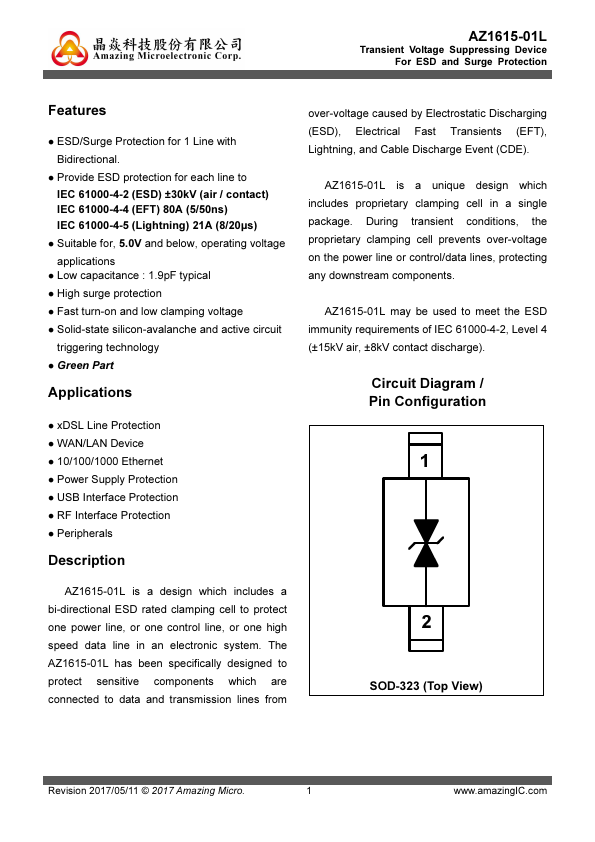

AZ1615-01L
Features
ESD/Surge Protection for 1 Line with Bidirectional. Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±30k V (air / contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 21A (8/20µs) Suitable for, 5.0V and below, operating voltage applications Low capacitance : 1.9p F typical High surge protection Fast turn-on and low clamping voltage Solid-state silicon-avalanche and active circuit triggering technology Green Part
Applications x DSL Line Protection WAN/LAN Device 10/100/1000 Ethernet Power Supply Protection USB Interface Protection RF Interface Protection Peripherals
Description over-voltage caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), Lightning, and Cable Discharge Event (CDE).
AZ1615-01L is a unique design which includes proprietary clamping cell in a single package. During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream...
