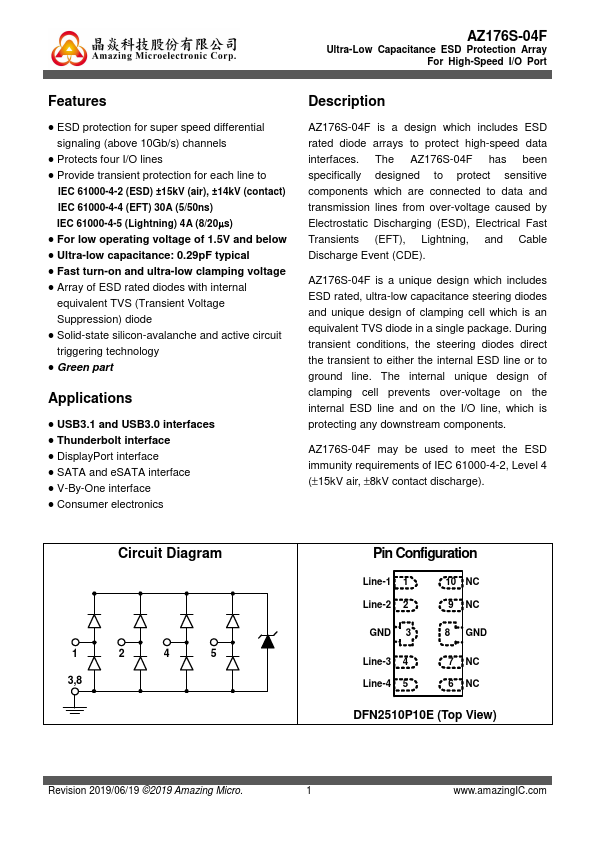

AZ176S-04F
Features
- ESD protection for super speed differential signaling (above 10Gb/s) channels
- Protects four I/O lines
- Provide transient protection for each line to
IEC 61000-4-2 (ESD) ±15k V (air), ±14k V (contact) IEC 61000-4-4 (EFT) 30A (5/50ns) IEC 61000-4-5 (Lightning) 4A (8/20µs)
- For low operating voltage of 1.5V and below
- Ultra-low capacitance: 0.29p F typical
- Fast turn-on and ultra-low clamping voltage
- Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode
- Solid-state silicon-avalanche and active circuit triggering technology
- Green part
Applications
- USB3.1 and USB3.0 interfaces
- Thunderbolt interface
- Display Port interface
- SATA and e SATA interface
- V-By-One interface
- Consumer electronics
Description
AZ176S-04F is a design which includes ESD rated diode arrays to protect high-speed data interfaces. The AZ176S-04F has been specifically designed to protect sensitive ponents which are connected to data and transmission lines...
