Amazing Microelectronic AZ1943-04F

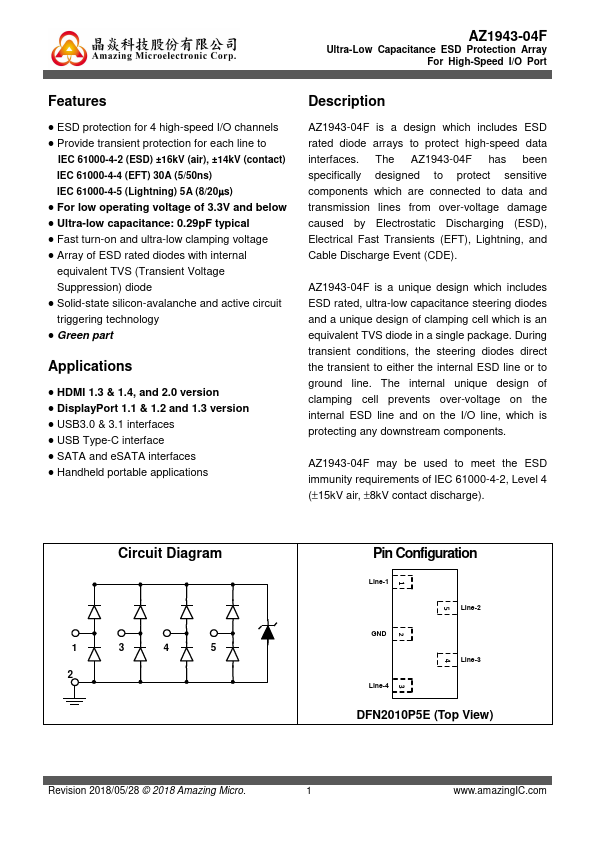

AZ1943-04F is a design which includes ESD rated diode arrays to protect high-speed data interfaces. The AZ1943-04F has been specifically designed to protect sensitive components which are connected to data and transmission lines from over-voltage damage caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), Lightning, and Cable Discharge Event (CDE). AZ1943-04F is a unique design which includes ESD rated, ultra-low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package.

Part No.	AZ1943-04F
Datasheet	AZ1943-04F Download
Manufacturer	Amazing Microelectronic
Description	Ultra-Low Capacitance ESD Protection Array For High-Speed I/O Port
Buy	Stock & Price

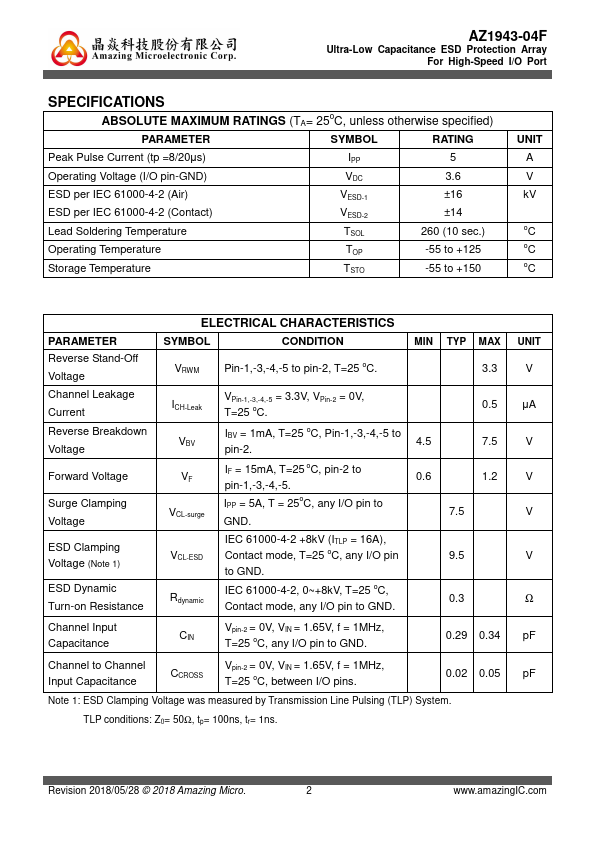

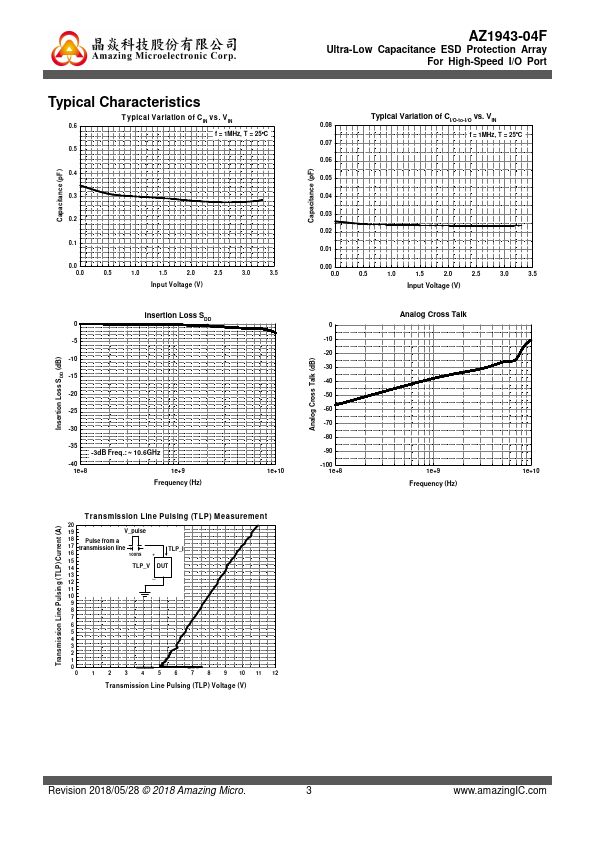

FEATURES

ESD protection for 4 high-speed I/O channels Provide transient protection for each line to IEC 61000-4-2 (ESD) ±16kV (air), ±14kV (contact) IEC 61000-4-4 (EFT) 30A (5/50ns) IEC 61000-4-5 (Lightning) 5A (8/20µs) For low operating voltage of 3.3V and below Ultra-low capacitance: 0.29pF typical Fast turn-on and ultra-low clamping voltage Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode Solid-state silicon-avalanche and active circuit triggering technology Green part

APPLICATIONS

HDMI 1.3 & 1.4, and 2.0 version DisplayPort 1.1 & 1.2 and 1.3 version USB3.0 & 3.1 interfaces USB Type-C interface SATA and eSATA interfaces Handheld portable applications

DESCRIPTION

During transient conditions, the steering diodes direct the transient to either the internal ESD line or to ground line. The internal unique design of clamping cell prevents over-voltage on the internal ESD line and on the I/O line, which is protecting any downstream components. AZ1943-04F may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).
