Amazing Microelectronic AZ2013-05R

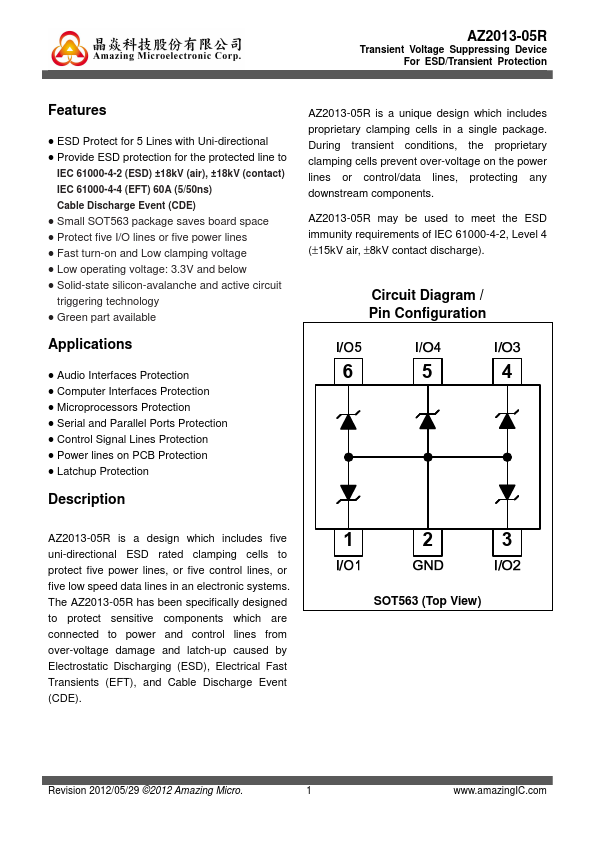

AZ2013-05R is a unique design which includes proprietary clamping cells in a single package. The AZ2013-05R has been specifically designed to protect sensitive components which are connected to power and control lines from over-voltage damage and latch-up caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), and Cable Discharge Event (CDE). Circuit Diagram / Pin Configuration 6 5 4 AZ2013-05R is a design which includes five uni-directional ESD rated clamping cells to protect five power lines, or five control lines, or five low speed data lines in an electronic systems.

Part No.	AZ2013-05R
Datasheet	AZ2013-05R Download
Manufacturer	Amazing Microelectronic
Description	Transient Voltage Suppressing Device
Buy	Stock & Price

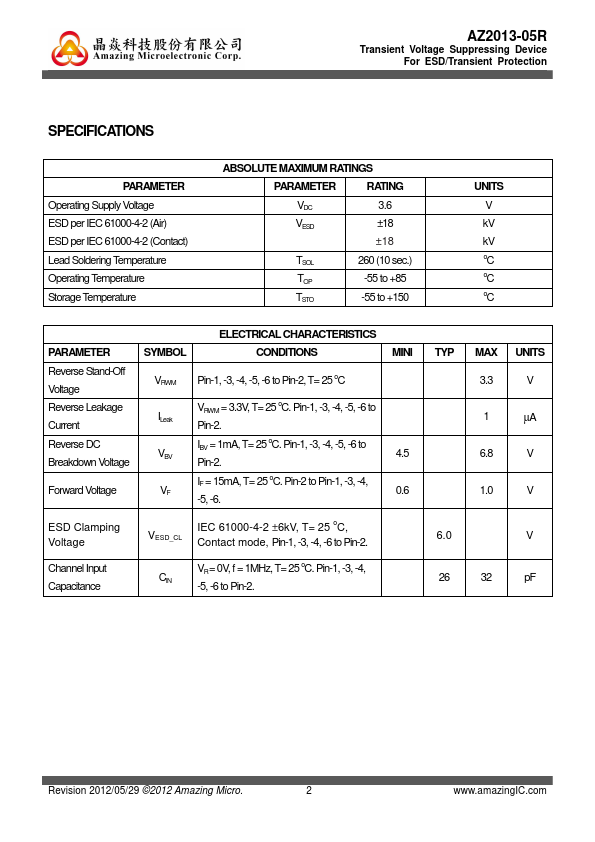

FEATURES

ESD Protect for 5 Lines with Uni-directional Provide ESD protection for the protected line to IEC 61000-4-2 (ESD) ±18kV (air), ±18kV (contact) IEC 61000-4-4 (EFT) 60A (5/50ns) Cable Discharge Event (CDE) Small SOT563 package saves board space Protect five I/O lines or five power lines Fast turn-on and Low clamping voltage Low operating voltage: 3.3V and below Solid-state silicon-avalanche and active circuit triggering technology Green part available

APPLICATIONS

Audio Interfaces Protection Computer Interfaces Protection Microprocessors Protection Serial and Parallel Ports Protection Control Signal Lines Protection Power lines on PCB Protection Latchup Protection

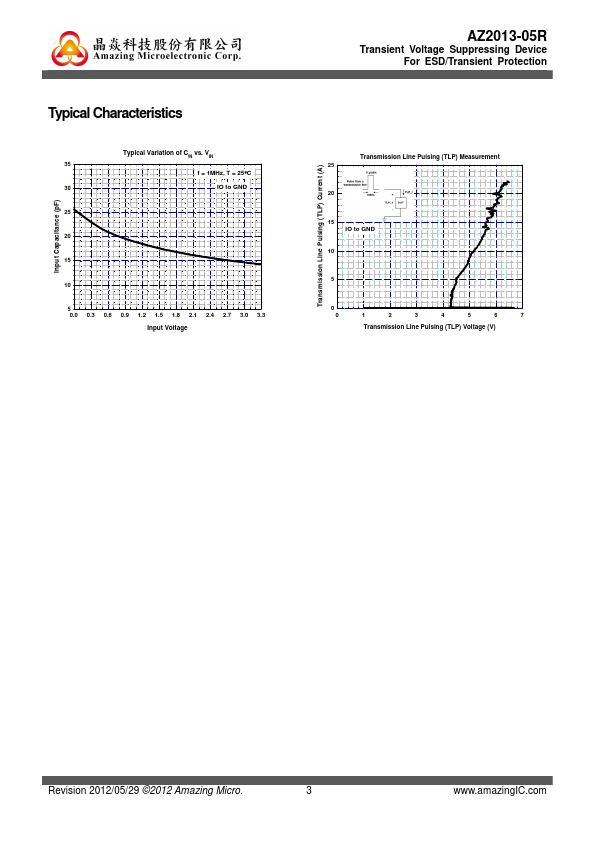

DESCRIPTION

During transient conditions, the proprietary clamping cells prevent over-voltage on the power lines or control/data lines, protecting any downstream components. AZ2013-05R may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge). 1 2 3 SOT563 (Top View) Revision 2012/05/29 ©2012 Amazing Micro.
