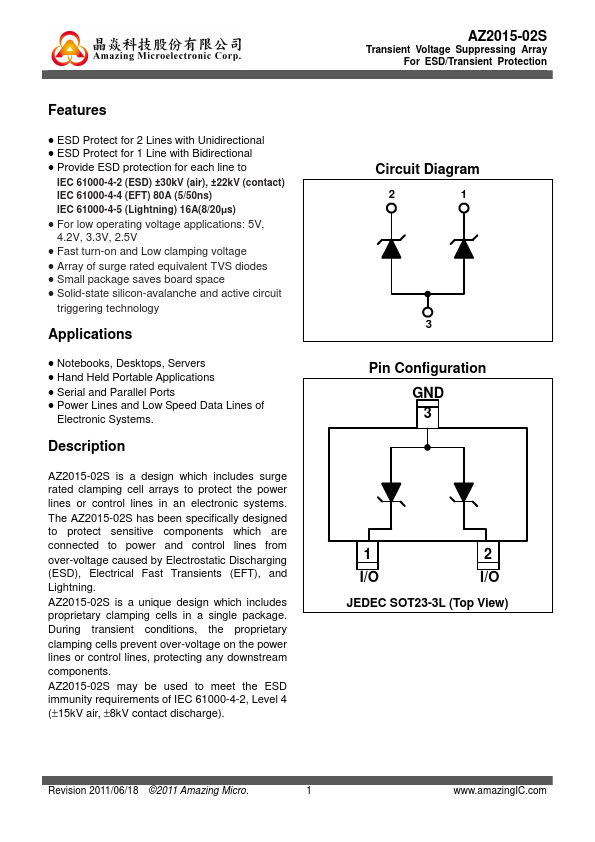

AZ2015-02S
Features
ESD Protect for 2 Lines with Unidirectional ESD Protect for 1 Line with Bidirectional Provide ESD protection for each line to
IEC 61000-4-2 (ESD) ±30k V (air), ±22k V (contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 16A(8/20µs)
For low operating voltage applications: 5V, 4.2V, 3.3V, 2.5V Fast turn-on and Low clamping voltage Array of surge rated equivalent TVS diodes Small package saves board space Solid-state silicon-avalanche and active circuit triggering technology
Applications
Notebooks, Desktops, Servers Hand Held Portable Applications Serial and Parallel Ports Power Lines and Low Speed Data Lines of Electronic Systems.
Description
AZ2015-02S is a design which includes surge rated clamping cell arrays to protect the power lines or control lines in an electronic systems. The AZ2015-02S has been specifically designed to protect sensitive ponents which are connected to power and control lines from over-voltage caused by Electrostatic Discharging (ESD),...
