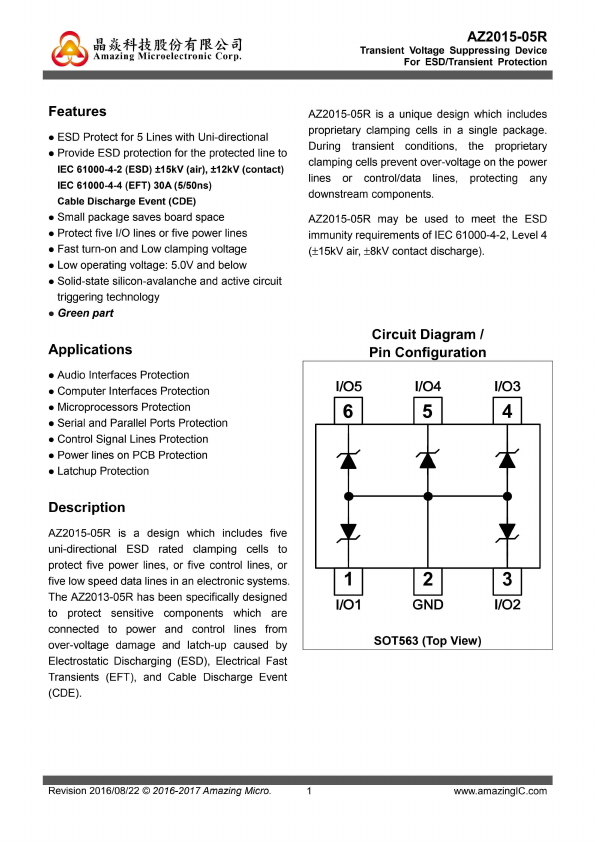

AZ2015-05R
Features
ESD Protect for 5 Lines with Uni-directional Provide ESD protection for the protected line to
IEC 61000-4-2 (ESD) ±15k V (air), ±12k V (contact) IEC 61000-4-4 (EFT) 30A (5/50ns) Cable Discharge Event (CDE)
Small package saves board space Protect five I/O lines or five power lines Fast turn-on and Low clamping voltage Low operating voltage: 5.0V and below Solid-state silicon-avalanche and active circuit triggering technology Green part
Applications
Audio Interfaces Protection puter Interfaces Protection Microprocessors Protection Serial and Parallel Ports Protection Control Signal Lines Protection Power lines on PCB Protection Latchup Protection
AZ2015-05R is a unique design which includes proprietary clamping cells in a single package. During transient conditions, the proprietary clamping cells prevent over-voltage on the power lines or control/data lines, protecting any downstream ponents.
AZ2015-05R may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4...
