AZ2025-02S
Features
ESD Protect for 2 Lines with Bi-directional Provide ESD protection for the protected line to
IEC 61000-4-2 (ESD) ±20k V (air), ±12k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 7A (8/20µs) Cable Discharge Event (CDE)
Small SOT23-3L package saves board space Protect two I/O lines or two power lines Fast turn-on and Low clamping voltage Low operating voltage: 5V Solid-state silicon-avalanche and active circuit triggering technology
Applications lines or control/data lines, protecting any downstream ponents.
AZ2025-02S is bi-directional and may be used on lines where the signal swings above and below ground.
AZ2025-02S may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15k V air, ±8k V contact discharge).

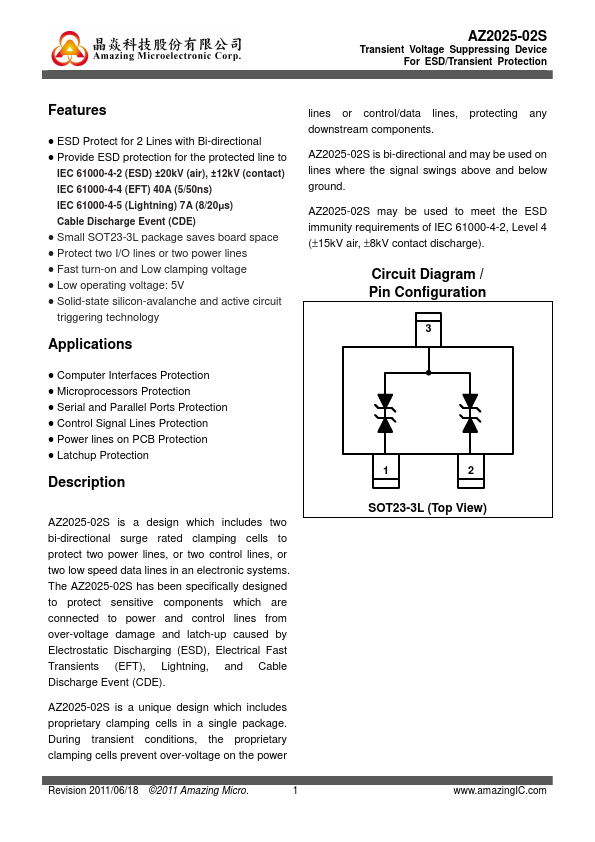

Circuit Diagram / Pin Configuration
3 puter Interfaces Protection Microprocessors Protection Serial and Parallel Ports Protection Control Signal Lines Protection Power lines on PCB Protection Latchup Protection
Description

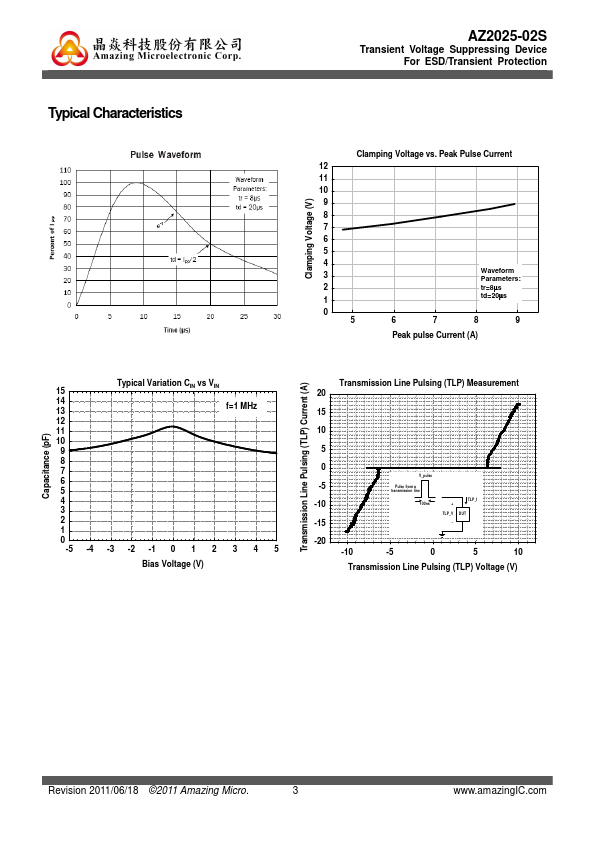

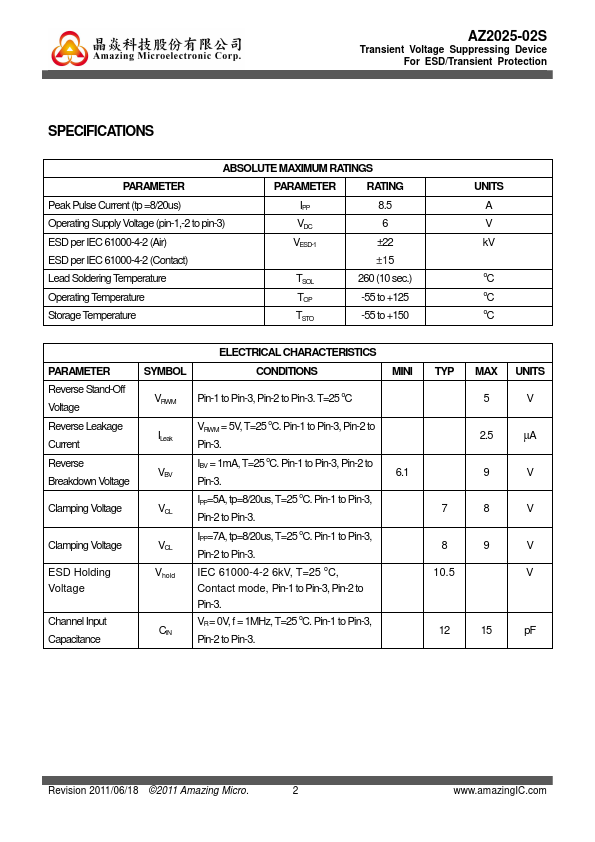

AZ202...
