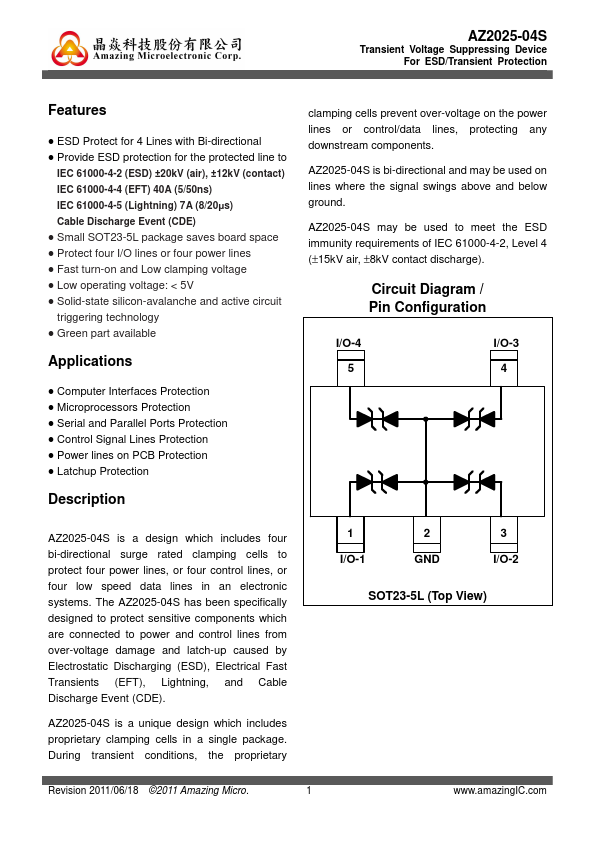

AZ2025-04S
Features
ESD Protect for 4 Lines with Bi-directional Provide ESD protection for the protected line to
IEC 61000-4-2 (ESD) ±20k V (air), ±12k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 7A (8/20µs) Cable Discharge Event (CDE)
Small SOT23-5L package saves board space Protect four I/O lines or four power lines Fast turn-on and Low clamping voltage Low operating voltage: < 5V Solid-state silicon-avalanche and active circuit triggering technology Green part available
Applications puter Interfaces Protection Microprocessors Protection Serial and Parallel Ports Protection Control Signal Lines Protection Power lines on PCB Protection Latchup Protection
Description clamping cells prevent over-voltage on the power lines or control/data lines, protecting any downstream ponents.
AZ2025-04S is bi-directional and may be used on lines where the signal swings above and below ground.
AZ2025-04S may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15k V...
