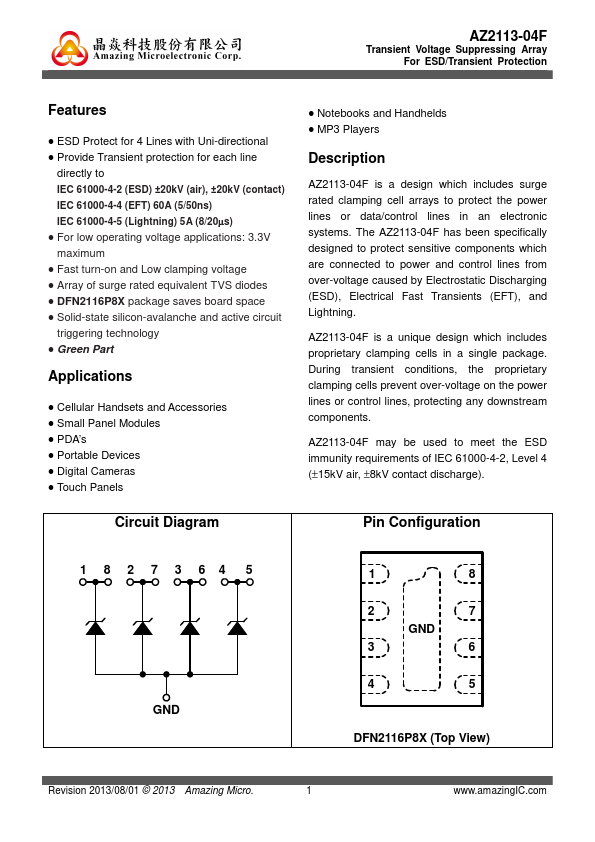

AZ2113-04F
Features
ESD Protect for 4 Lines with Uni-directional Provide Transient protection for each line directly to
IEC 61000-4-2 (ESD) ±20k V (air), ±20k V (contact) IEC 61000-4-4 (EFT) 60A (5/50ns) IEC 61000-4-5 (Lightning) 5A (8/20µs)
For low operating voltage applications: 3.3V maximum Fast turn-on and Low clamping voltage Array of surge rated equivalent TVS diodes DFN2116P8X package saves board space Solid-state silicon-avalanche and active circuit triggering technology Green Part
Applications
Cellular Handsets and Accessories Small Panel Modules PDA’s Portable Devices Digital Cameras Touch Panels
Notebooks and Handhelds MP3 Players
Description
AZ2113-04F is a design which includes surge rated clamping cell arrays to protect the power lines or data/control lines in an electronic systems. The AZ2113-04F has been specifically designed to protect sensitive ponents which are connected to power and control lines from over-voltage caused by Electrostatic Discharging (ESD), Electrical Fast...
