• Part: AZ2113-08F
  • Manufacturer: Amazing Microelectronic
  • Size: 155.93 KB
Download AZ2113-08F Datasheet PDF

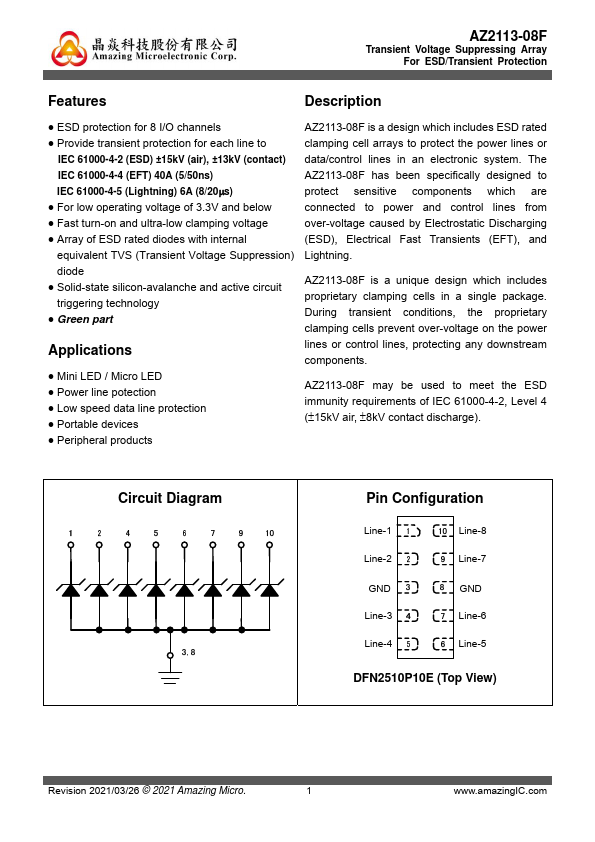

AZ2113-08F datasheet preview

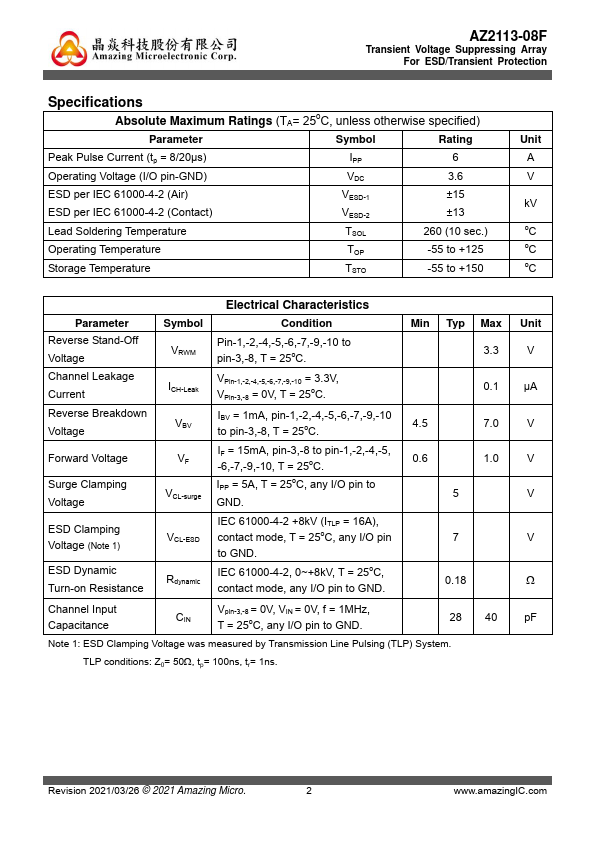

AZ2113-08F page 2
Page 2

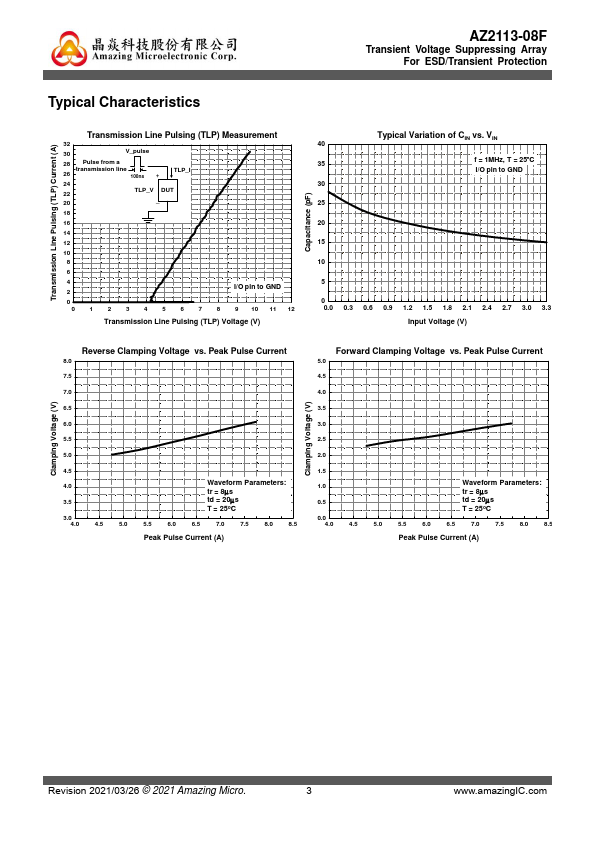

AZ2113-08F page 3
Page 3

AZ2113-08F Key Features

  • ESD protection for 8 I/O channels
  • For low operating voltage of 3.3V and below
  • Fast turn-on and ultra-low clamping voltage
  • Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode
  • Solid-state silicon-avalanche and active circuit triggering technology
  • Green part

Related Amazing Microelectronic Datasheets

Part Number Description
AZ2113-04F Transient Voltage Suppressing Array
AZ2115-04C Transient Voltage Suppressing Array
AZ2115-04SN1 Transient Voltage Suppressing Array
AZ2115-05C Transient Voltage Suppressing Array
AZ2115-05F Transient Voltage Suppressing Array

AZ2113-08F Description

The AZ2113-08F has been specifically designed to protect sensitive ponents which are connected to power and control lines from over-voltage caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), and Lightning. AZ2113-08F is a unique design which includes proprietary clamping cells in a single package. During transient conditions, the proprietary clamping cells prevent over-voltage on the power...
