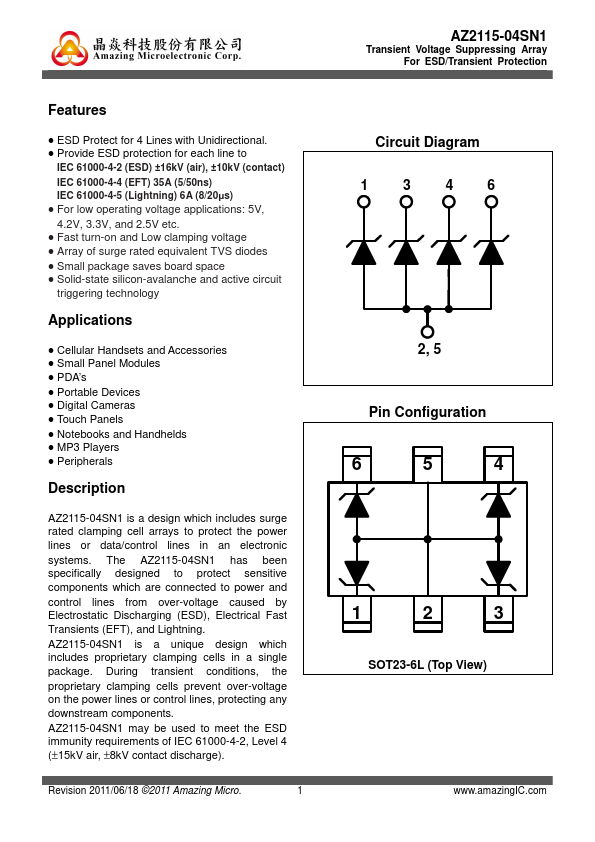

AZ2115-04SN1
Features
ESD Protect for 4 Lines with Unidirectional. Provide ESD protection for each line to
IEC 61000-4-2 (ESD) ±16k V (air), ±10k V (contact) IEC 61000-4-4 (EFT) 35A (5/50ns) IEC 61000-4-5 (Lightning) 6A (8/20µs)
For low operating voltage applications: 5V, 4.2V, 3.3V, and 2.5V etc. Fast turn-on and Low clamping voltage Array of surge rated equivalent TVS diodes Small package saves board space Solid-state silicon-avalanche and active circuit triggering technology
Applications
Cellular Handsets and Accessories Small Panel Modules PDA’s Portable Devices Digital Cameras Touch Panels Notebooks and Handhelds MP3 Players Peripherals
Description
AZ2115-04SN1 is a design which includes surge rated clamping cell arrays to protect the power lines or data/control lines in an electronic systems. The AZ2115-04SN1 has been specifically designed to protect sensitive ponents which are connected to power and control lines from over-voltage caused by Electrostatic Discharging (ESD), Electrical Fast...
