AZ2115-05S
Features
(±15k V air, ±8k V contact discharge).
ESD Protect for 5 Lines with Unidirectional. Provide ESD protection for each line to
IEC 61000-4-2 (ESD) ±16k V (air), ±10k V (contact) IEC 61000-4-4 (EFT) 35A (5/50ns) IEC 61000-4-5 (Lightning) 3.5 ~ 6A (8/20µs)
For low operating voltage applications: 5V, 4.2V, 3.3V, and 2.5V etc. Fast turn-on and Low clamping voltage Array of surge rated equivalent TVS diodes Small package saves board space Solid-state silicon-avalanche and active circuit triggering technology Green part available
Applications
Cellular Handsets and Accessories Small Panel Modules PDA’s Portable Devices Digital Cameras Touch Panels Notebooks and Handhelds MP3 Players Peripherals
Description

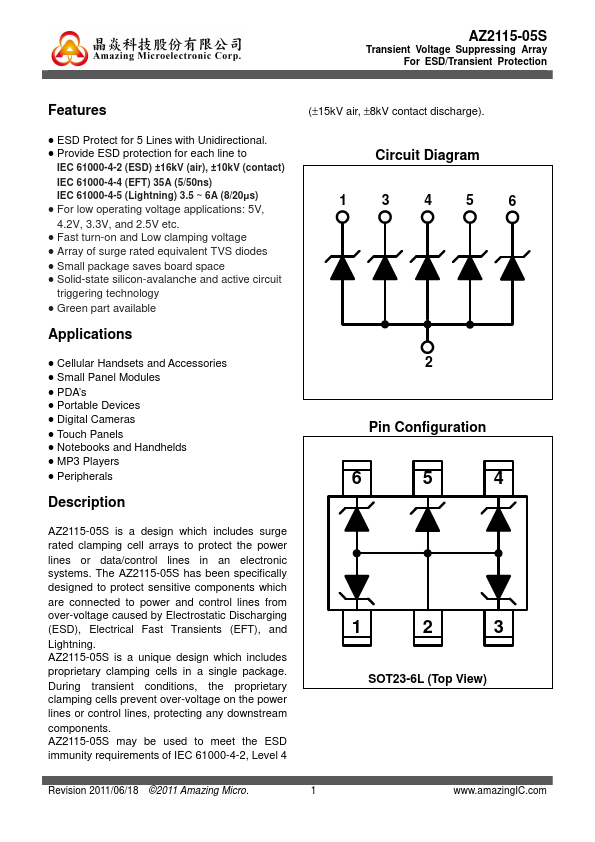

Circuit Diagram 13456
Pin Configuration
AZ2115-05S is a design which includes surge rated clamping cell arrays to protect the power lines or data/control lines in an electronic systems. The AZ2115-05S has been specifically designed to protect sensitive ponents which are...
