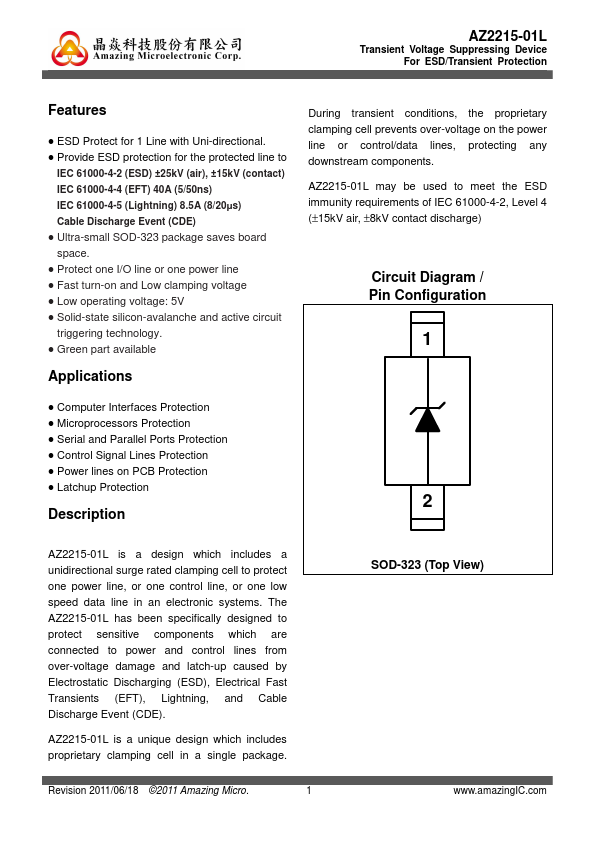

AZ2215-01L
Features
ESD Protect for 1 Line with Uni-directional. Provide ESD protection for the protected line to
IEC 61000-4-2 (ESD) ±25k V (air), ±15k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 8.5A (8/20µs) Cable Discharge Event (CDE)
Ultra-small SOD-323 package saves board space. Protect one I/O line or one power line Fast turn-on and Low clamping voltage Low operating voltage: 5V Solid-state silicon-avalanche and active circuit triggering technology. Green part available
Applications
During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream ponents. AZ2215-01L may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15k V air, ±8k V contact discharge)
Circuit Diagram / Pin Configuration
1 puter Interfaces Protection Microprocessors Protection Serial and Parallel Ports Protection Control Signal Lines Protection Power lines on PCB Protection Latchup...
