Amazing Microelectronic AZ3003-01G

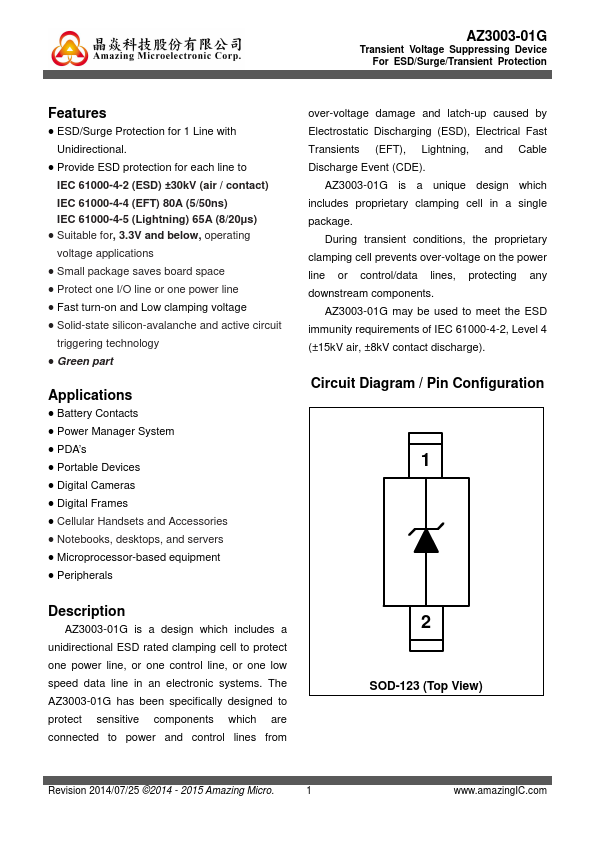

AZ3003-01G is a unique design which includes proprietary clamping cell in a single package. The AZ3003-01G has been specifically designed to protect sensitive components which are connected to power and control lines from 2 SOD-123 (Top View) Revision 2014/07/25 ©2014 - 2015 Amazing Micro. Circuit Diagram / Pin Configuration 1 Description AZ3003-01G is a design which includes a unidirectional ESD rated clamping cell to protect one power line, or one control line, or one low speed data line in an electronic systems.

Part No.	AZ3003-01G
Datasheet	AZ3003-01G Download
Manufacturer	Amazing Microelectronic
Description	Transient Voltage Suppressing Device
Buy	Stock & Price

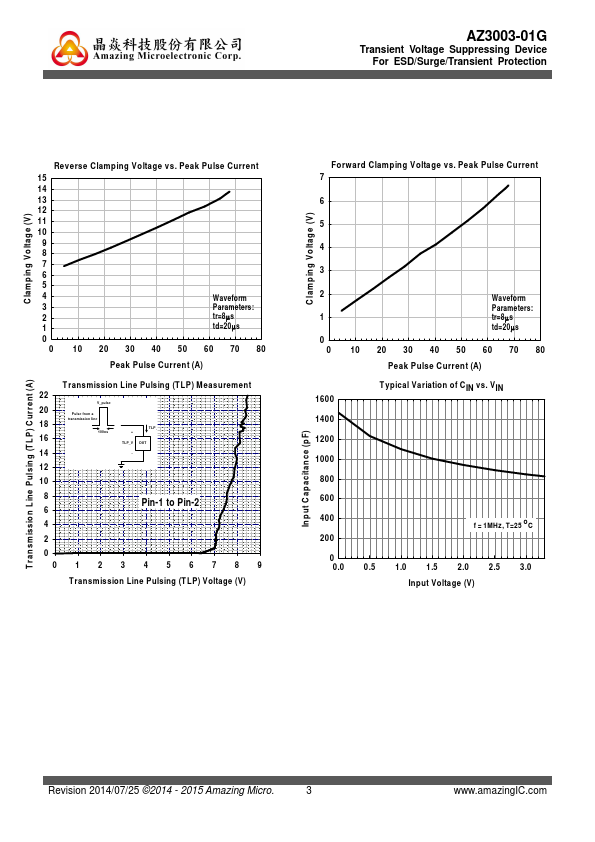

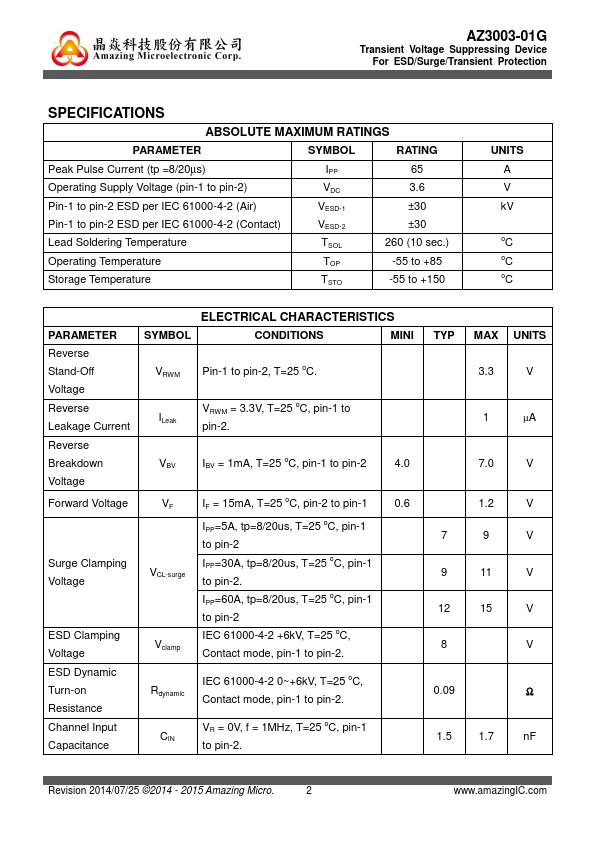

FEATURES

ESD/Surge Protection for 1 Line with Unidirectional. Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±30kV (air / contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 65A (8/20µs) Suitable for, 3.3V and below, operating voltage applications Small package saves board space Protect one I/O line or one power line Fast turn-on and Low clamping voltage Solid-state silicon-avalanche and active circuit triggering technology Green part

APPLICATIONS

Battery Contacts Power Manager System PDA’s Portable Devices Digital Cameras Digital Frames Cellular Handsets and Accessories Notebooks, desktops, and servers Microprocessor-based equipment Peripherals over-voltage damage and latch-up caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), Lightning, and Cable Discharge Event (CDE). During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream components. AZ3003-01G may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).
