AZ3005-01G Overview

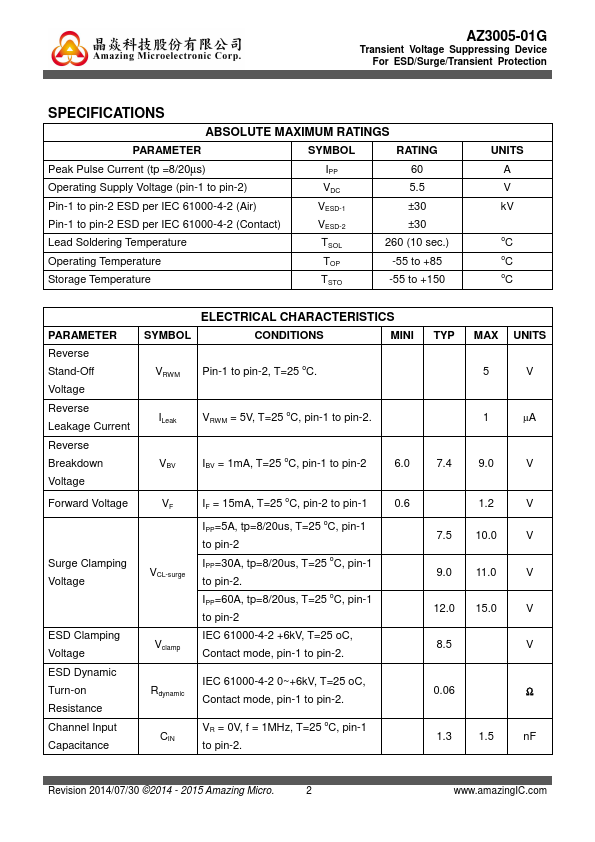

AZ3005-01G is a design which includes a unidirectional ESD rated clamping cell to protect one power line, or one control line, or one low speed data line in an electronic systems. The AZ3005-01G has been specifically designed to protect sensitive ponents which are connected to power and control lines from 2 SOD-123 (Top View) Revision 2014/07/30 ©2014 - 2015 Amazing Micro. Reverse Leakage Current ILeak VRWM = 5V,...
