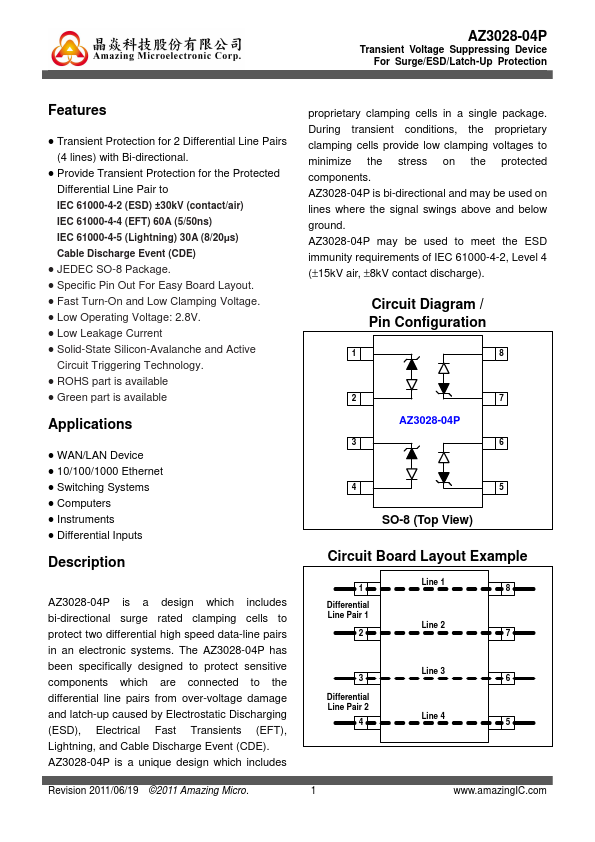

AZ3028-04P
Features
Transient Protection for 2 Differential Line Pairs (4 lines) with Bi-directional. Provide Transient Protection for the Protected Differential Line Pair to
IEC 61000-4-2 (ESD) ±30k V (contact/air) IEC 61000-4-4 (EFT) 60A (5/50ns) IEC 61000-4-5 (Lightning) 30A (8/20µs) Cable Discharge Event (CDE)
JEDEC SO-8 Package. Specific Pin Out For Easy Board Layout. Fast Turn-On and Low Clamping Voltage. Low Operating Voltage: 2.8V. Low Leakage Current Solid-State Silicon-Avalanche and Active Circuit Triggering Technology. ROHS part is available Green part is available
Applications
WAN/LAN Device 10/100/1000 Ethernet Switching Systems puters Instruments Differential Inputs
Description
AZ3028-04P is a design which includes bi-directional surge rated clamping cells to protect two differential high speed data-line pairs in an electronic systems. The AZ3028-04P has been specifically designed to protect sensitive ponents which are connected to the differential line pairs from over-voltage...
