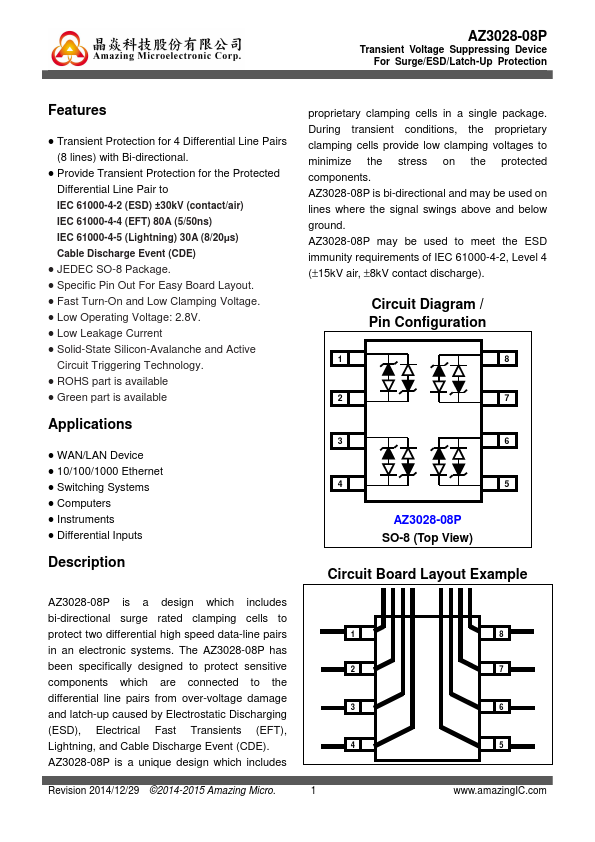

AZ3028-08P
Features
Transient Protection for 4 Differential Line Pairs (8 lines) with Bi-directional. Provide Transient Protection for the Protected Differential Line Pair to
IEC 61000-4-2 (ESD) ±30k V (contact/air) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 30A (8/20µs) Cable Discharge Event (CDE)
JEDEC SO-8 Package. Specific Pin Out For Easy Board Layout. Fast Turn-On and Low Clamping Voltage. Low Operating Voltage: 2.8V. Low Leakage Current Solid-State Silicon-Avalanche and Active Circuit Triggering Technology. ROHS part is available Green part is available
Applications
WAN/LAN Device 10/100/1000 Ethernet Switching Systems puters Instruments Differential Inputs
Description proprietary clamping cells in a single package. During transient conditions, the proprietary clamping cells provide low clamping voltages to minimize the stress on the protected ponents. AZ3028-08P is bi-directional and may be used on lines where the signal swings above and below ground. AZ3028-08P may be...
