AZ3105-01F
Features
ESD/Surge Protection for 1 Line with Unidirectional. Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±30k V (air / contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 80A (8/20µs) For operating voltage of 5.0V and below 1.6mm x 1.0mm DFN package saves board space High surge protection Fast turn-on and Low clamping voltage Solid-state silicon-avalanche and active circuit triggering technology Green Part
Applications
AZ3105-01F is a unique design which includes proprietary clamping cell in a single package. During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream ponents.
AZ3105-01F may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15k V air, ±8k V contact discharge).

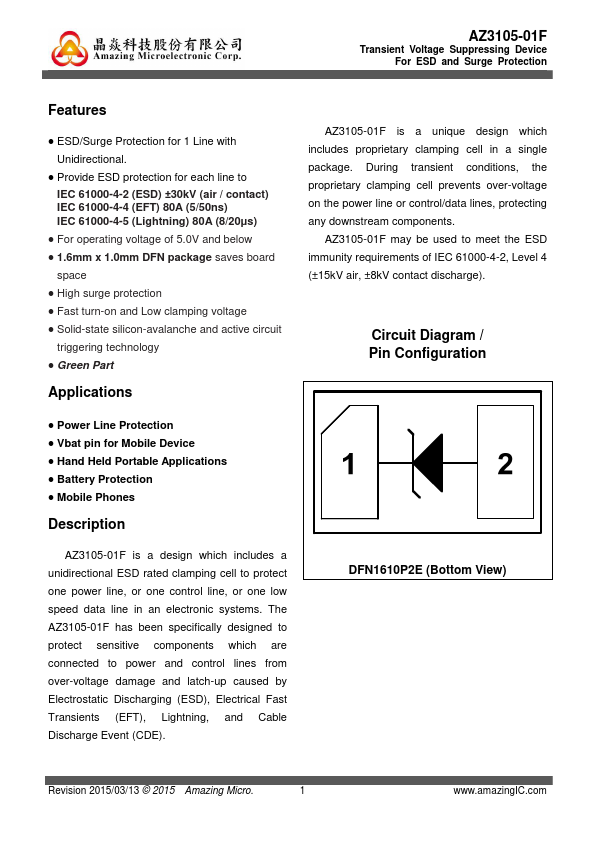

Circuit Diagram / Pin Configuration
Power Line Protection Vbat pin for Mobile Device Hand Held Portable Applications Battery Protection Mobile Phones
Description

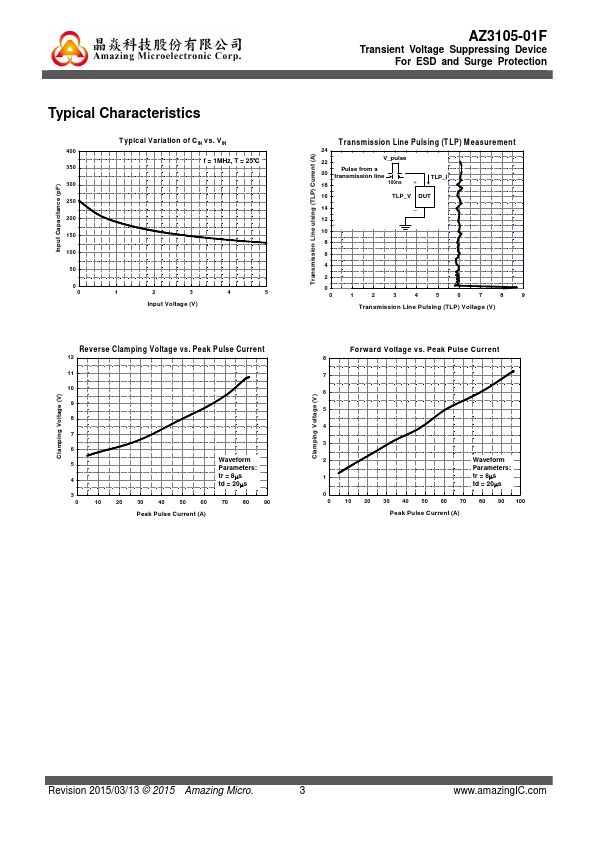

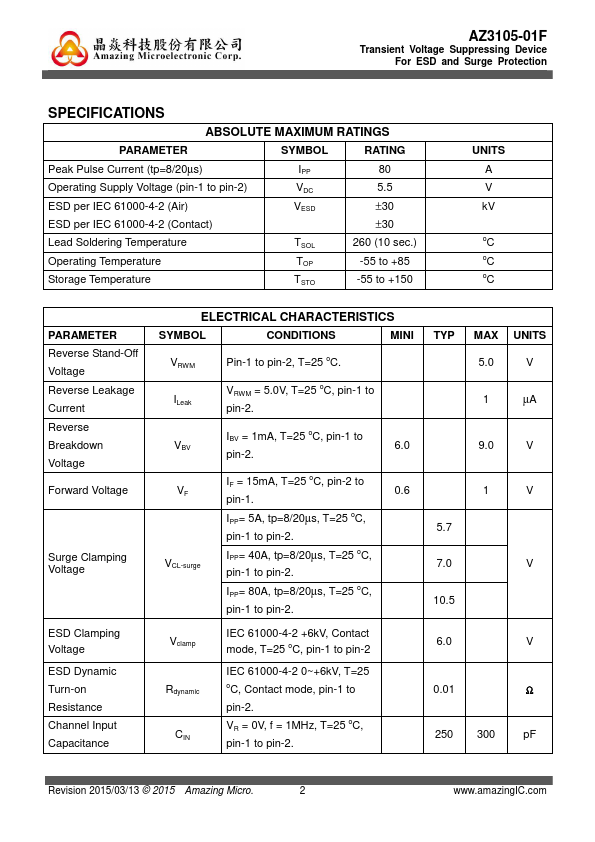

AZ3105-...
