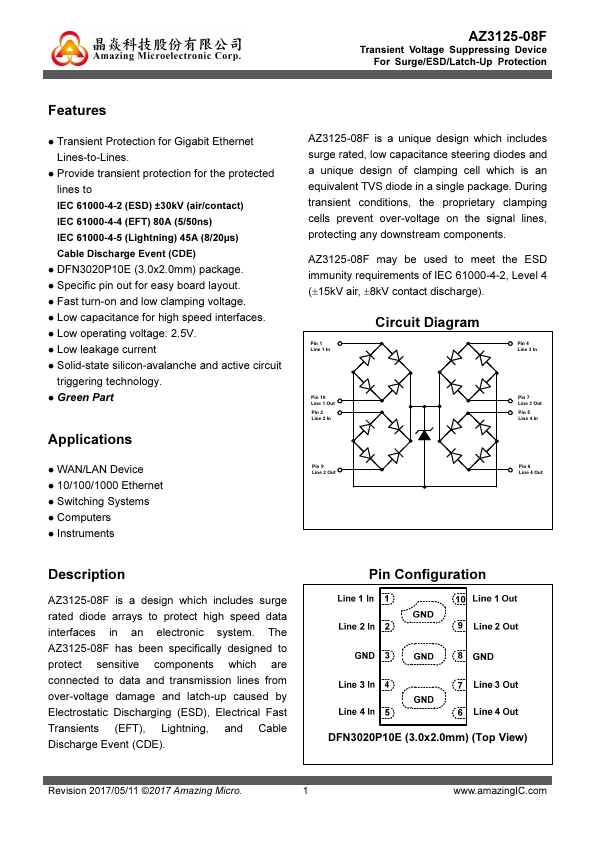

AZ3125-08F
Features
Transient Protection for Gigabit Ethernet Lines-to-Lines. Provide transient protection for the protected lines to
IEC 61000-4-2 (ESD) ±30k V (air/contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 45A (8/20µs) Cable Discharge Event (CDE)
DFN3020P10E (3.0x2.0mm) package. Specific pin out for easy board layout. Fast turn-on and low clamping voltage. Low capacitance for high speed interfaces. Low operating voltage: 2.5V. Low leakage current Solid-state silicon-avalanche and active circuit triggering technology. Green Part
Applications
WAN/LAN Device 10/100/1000 Ethernet Switching Systems puters Instruments
AZ3125-08F is a unique design which includes surge rated, low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package. During transient conditions, the proprietary clamping cells prevent over-voltage on the signal lines, protecting any downstream ponents.
AZ3125-08F may be used to meet the ESD...
