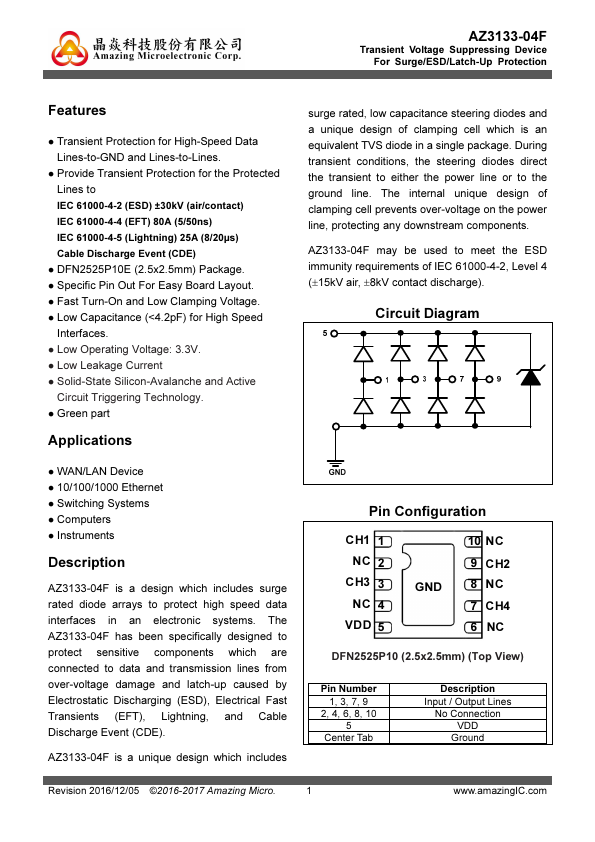

AZ3133-04F

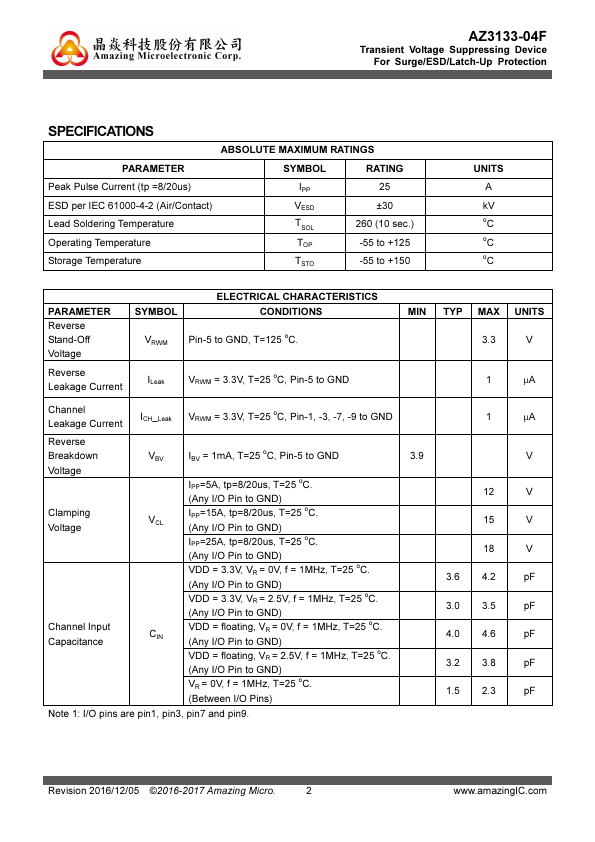

Features
Transient Protection for High-Speed Data Lines-to-GND and Lines-to-Lines. Provide Transient Protection for the Protected Lines to
IEC 61000-4-2 (ESD) ±30k V (air/contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 25A (8/20µs) Cable Discharge Event (CDE)
DFN2525P10E (2.5x2.5mm) Package. Specific Pin Out For Easy Board Layout. Fast Turn-On and Low Clamping Voltage. Low Capacitance (<4.2p F) for High Speed Interfaces. Low Operating Voltage: 3.3V. Low Leakage Current Solid-State Silicon-Avalanche and Active Circuit Triggering Technology. Green part
Applications surge rated, low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package. During transient conditions, the steering diodes direct the transient to either the power line or to the ground line. The internal unique design of clamping cell prevents over-voltage on the power line, protecting any downstream ponents.
AZ3133-04F may be used to meet the...
