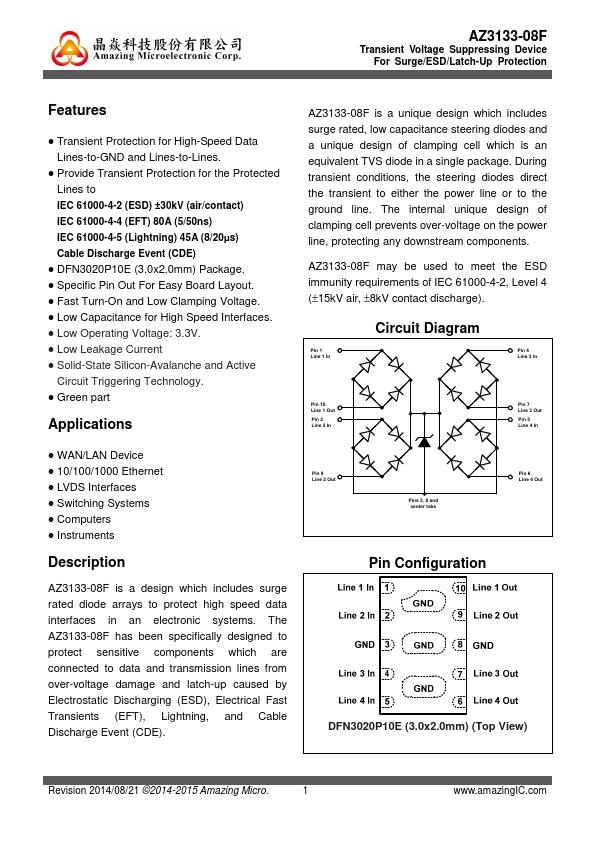

AZ3133-08F Overview
Description
AZ3133-08F is a design which includes surge rated diode arrays to protect high speed data interfaces in an electronic systems. The AZ3133-08F has been specifically designed to protect sensitive components which are connected to data and transmission lines from over-voltage damage and latch-up caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), Lightning, and Cable Discharge Event (CDE).
Key Features
- Transient Protection for High-Speed Data Lines-to-GND and Lines-to-Lines
- Specific Pin Out For Easy Board Layout
- Fast Turn-On and Low Clamping Voltage
- Low Capacitance for High Speed Interfaces
- Low Operating Voltage: 3.3V
- Low Leakage Current Solid-State Silicon-Avalanche and Active Circuit Triggering Technology
