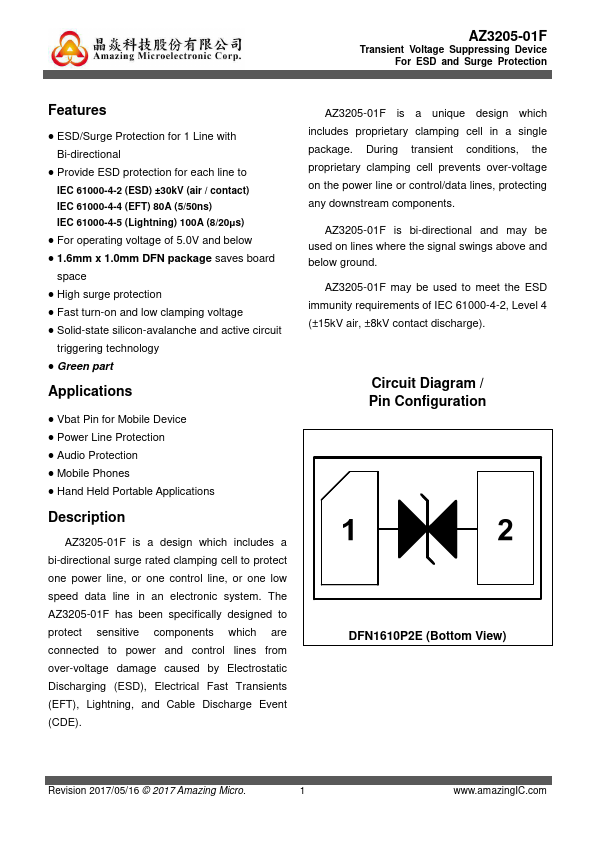

AZ3205-01F
Features
ESD/Surge Protection for 1 Line with Bi-directional Provide ESD protection for each line to
IEC 61000-4-2 (ESD) ±30k V (air / contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 100A (8/20µs)
For operating voltage of 5.0V and below 1.6mm x 1.0mm DFN package saves board space High surge protection Fast turn-on and low clamping voltage Solid-state silicon-avalanche and active circuit triggering technology Green part
Applications
Vbat Pin for Mobile Device Power Line Protection Audio Protection Mobile Phones Hand Held Portable Applications
Description
AZ3205-01F is a design which includes a bi-directional surge rated clamping cell to protect one power line, or one control line, or one low speed data line in an electronic system. The AZ3205-01F has been specifically designed to protect sensitive ponents which are connected to power and control lines from over-voltage damage caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), Lightning, and...
