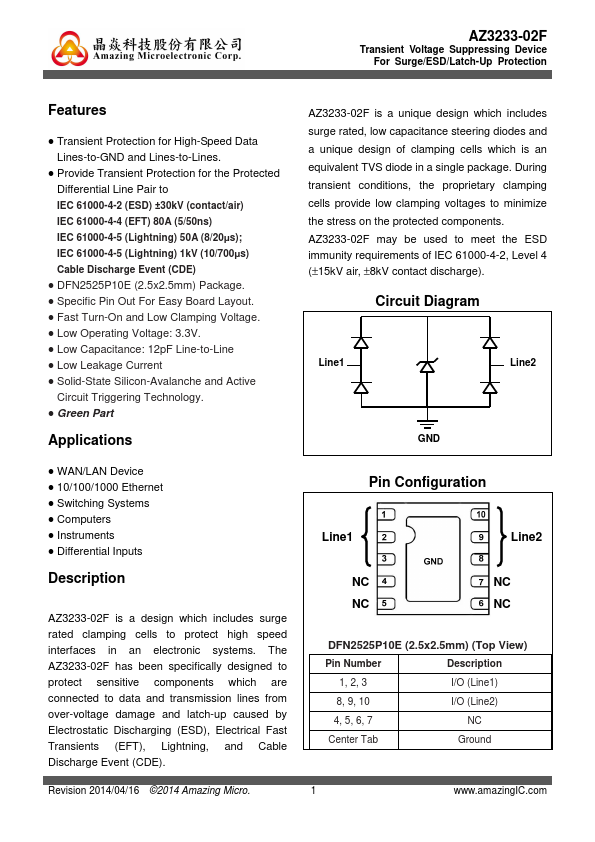

AZ3233-02F
Features
Transient Protection for High-Speed Data Lines-to-GND and Lines-to-Lines. Provide Transient Protection for the Protected Differential Line Pair to
IEC 61000-4-2 (ESD) ±30k V (contact/air) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 50A (8/20µs); IEC 61000-4-5 (Lightning) 1k V (10/700µs) Cable Discharge Event (CDE)
DFN2525P10E (2.5x2.5mm) Package. Specific Pin Out For Easy Board Layout. Fast Turn-On and Low Clamping Voltage. Low Operating Voltage: 3.3V. Low Capacitance: 12p F Line-to-Line Low Leakage Current Solid-State Silicon-Avalanche and Active Circuit Triggering Technology. Green Part
Applications
AZ3233-02F is a unique design which includes surge rated, low capacitance steering diodes and a unique design of clamping cells which is an equivalent TVS diode in a single package. During transient conditions, the proprietary clamping cells provide low clamping voltages to minimize the stress on the protected ponents. AZ3233-02F may be used to meet the ESD immunity...
