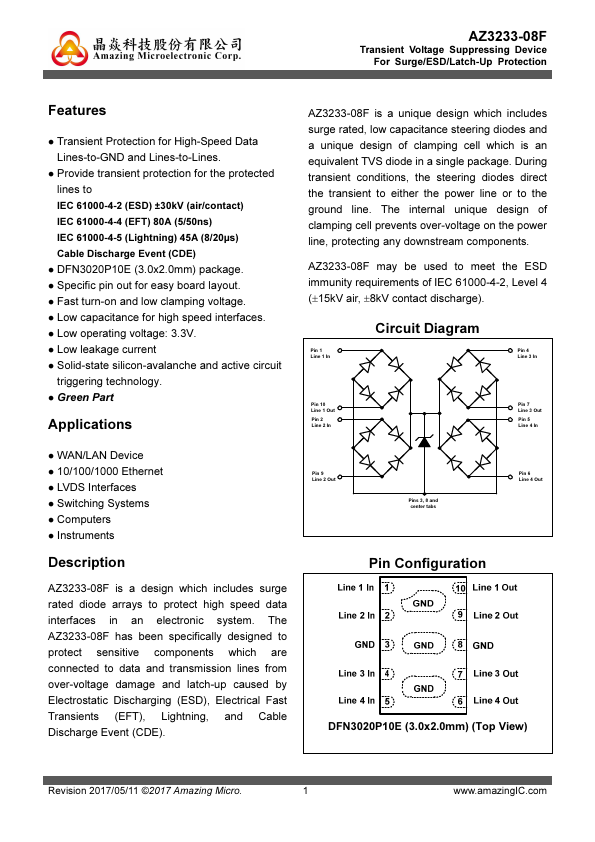

AZ3233-08F
Features

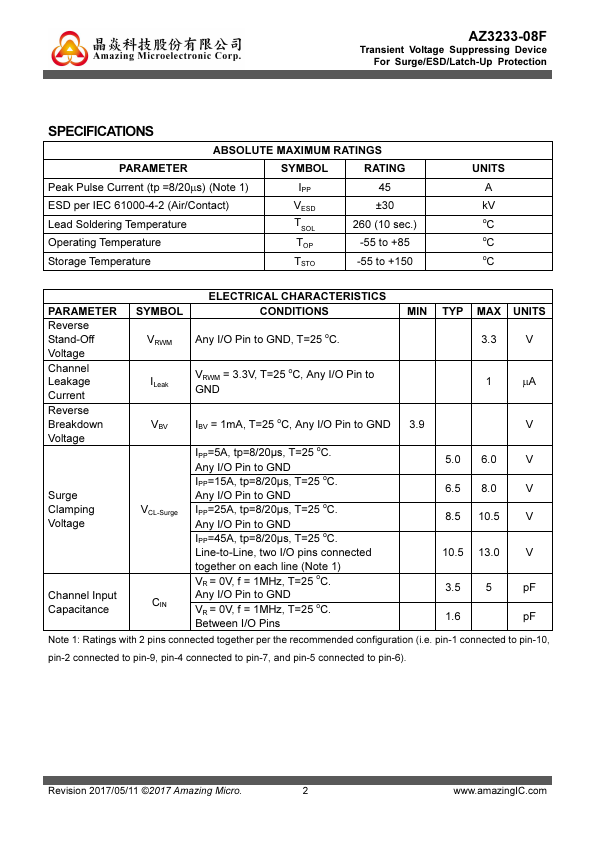

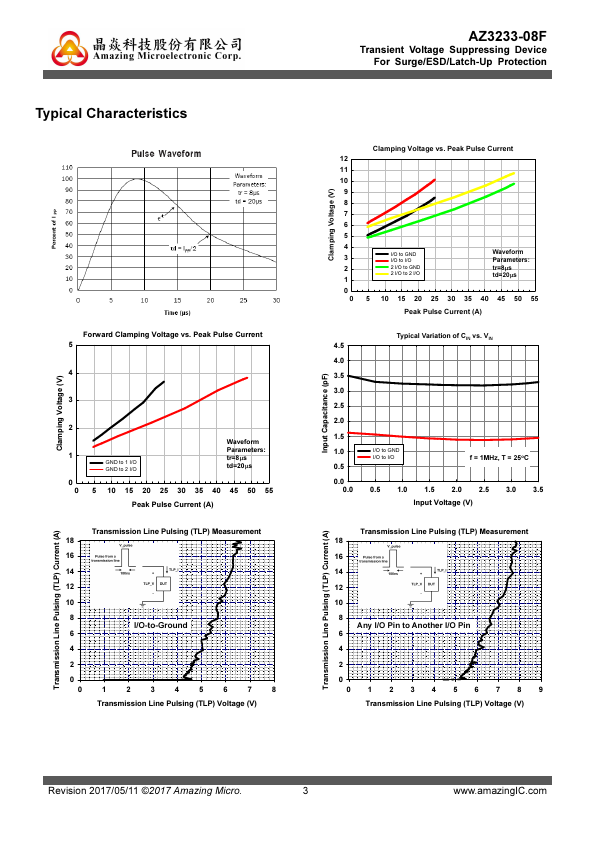

Transient Protection for High-Speed Data Lines-to-GND and Lines-to-Lines. Provide transient protection for the protected lines to
IEC 61000-4-2 (ESD) ±30k V (air/contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 45A (8/20µs) Cable Discharge Event (CDE)
DFN3020P10E (3.0x2.0mm) package. Specific pin out for easy board layout. Fast turn-on and low clamping voltage. Low capacitance for high speed interfaces. Low operating voltage: 3.3V. Low leakage current Solid-state silicon-avalanche and active circuit triggering technology. Green Part
Applications
AZ3233-08F is a unique design which includes surge rated, low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package. During transient conditions, the steering diodes direct the transient to either the power line or to the ground line. The internal unique design of clamping cell prevents over-voltage on the power line, protecting any downstream...
