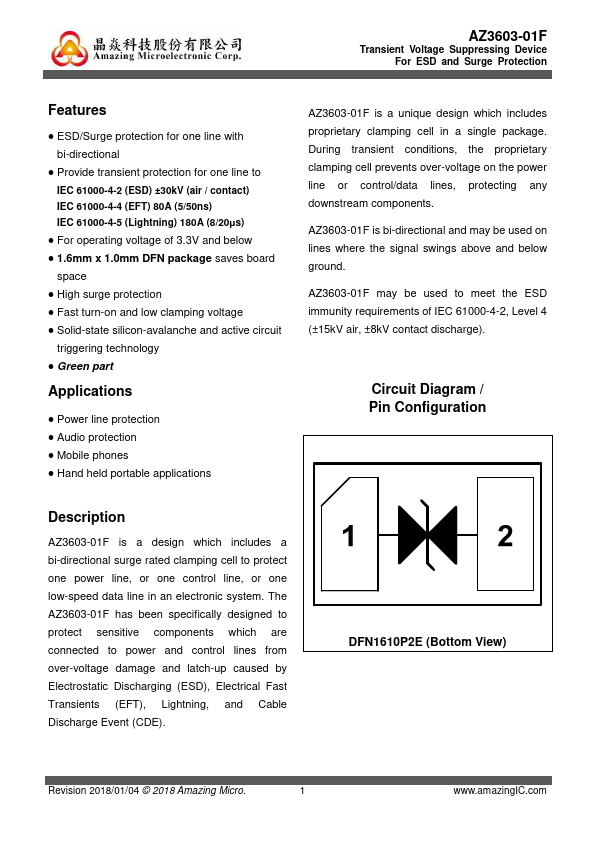

AZ3603-01F
Features
ESD/Surge protection for one line with bi-directional Provide transient protection for one line to
IEC 61000-4-2 (ESD) ±30k V (air / contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 180A (8/20µs)
For operating voltage of 3.3V and below 1.6mm x 1.0mm DFN package saves board space High surge protection Fast turn-on and low clamping voltage Solid-state silicon-avalanche and active circuit triggering technology Green part
Applications
Power line protection Audio protection Mobile phones Hand held portable applications
AZ3603-01F is a unique design which includes proprietary clamping cell in a single package. During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream ponents.
AZ3603-01F is bi-directional and may be used on lines where the signal swings above and below ground.

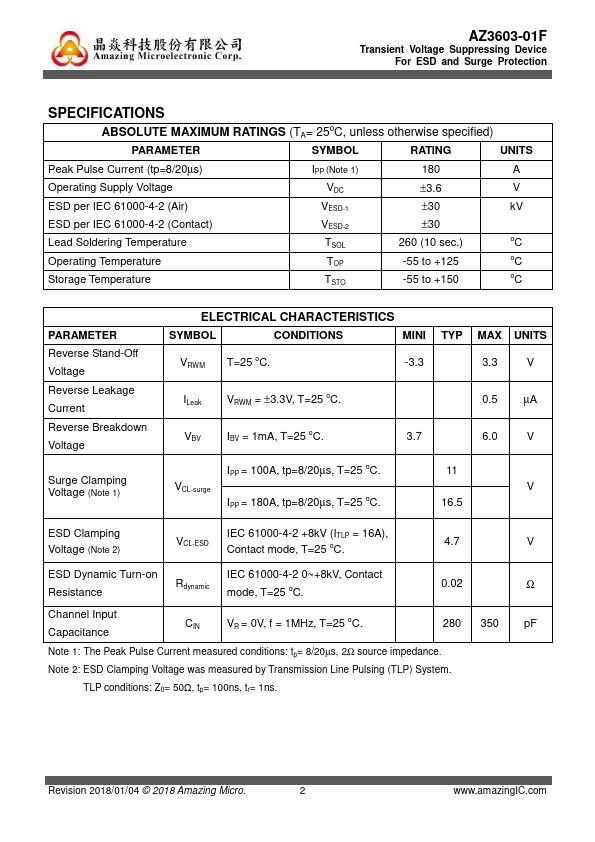

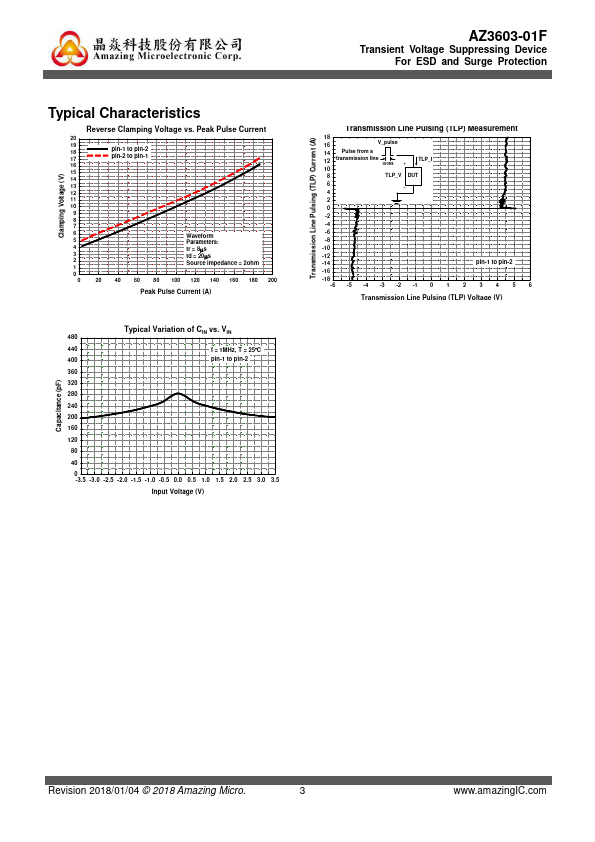

AZ3603-01F may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15k V air,...
