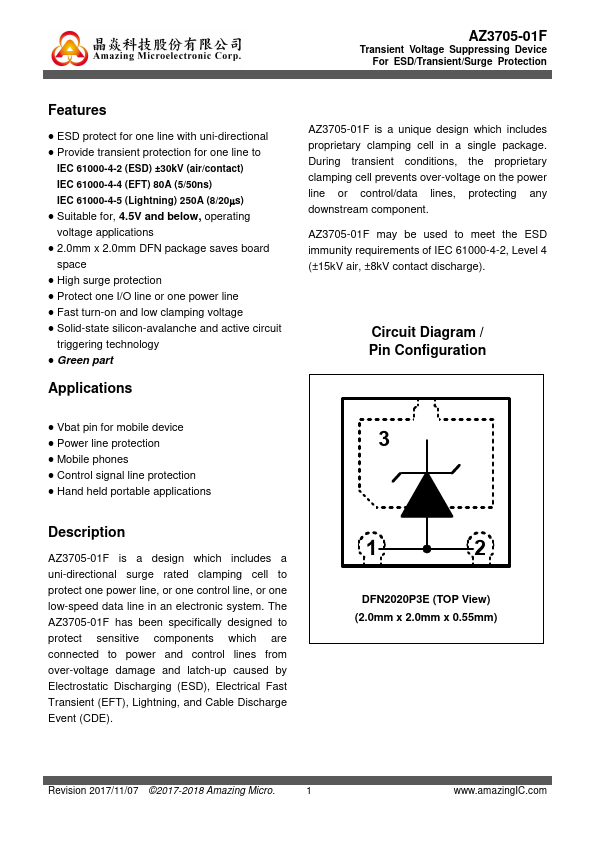

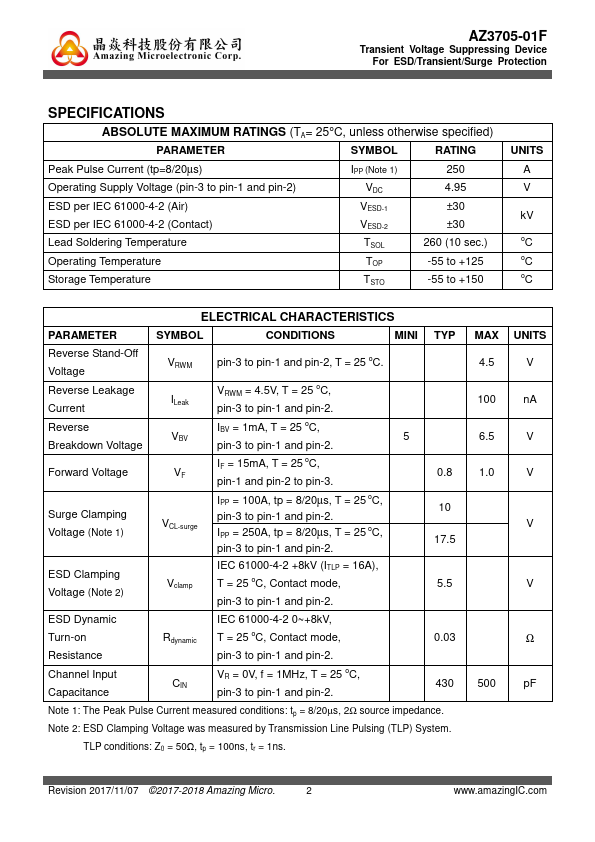

AZ3705-01F
Features
ESD protect for one line with uni-directional Provide transient protection for one line to
IEC 61000-4-2 (ESD) ±30k V (air/contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 250A (8/20µs)
Suitable for, 4.5V and below, operating voltage applications 2.0mm x 2.0mm DFN package saves board space High surge protection Protect one I/O line or one power line Fast turn-on and low clamping voltage Solid-state silicon-avalanche and active circuit triggering technology Green part
Applications
AZ3705-01F is a unique design which includes proprietary clamping cell in a single package. During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream ponent.
AZ3705-01F may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15k V air, ±8k V contact discharge).
Circuit Diagram / Pin Configuration
Vbat pin for mobile device
Power line protection
Mobile phones
Control...
