Amazing Microelectronic AZ4007-01H

AZ4007-01H is a design which includes a unidirectional surge rated clamping cell to protect one power line, or one control line, or one low speed data line in an electronic systems. The AZ4007-01H has been specifically designed to protect sensitive components which are connected to power and control lines from over-voltage damage and latch-up caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), Lightning, and Cable Discharge Event (CDE). AZ4007-01H is a unique design which includes proprietary clamping cell in a single package.

Part No.	AZ4007-01H
Datasheet	AZ4007-01H Download
Manufacturer	Amazing Microelectronic
Description	Transient Voltage Suppressing Device
Buy	Stock & Price

FEATURES

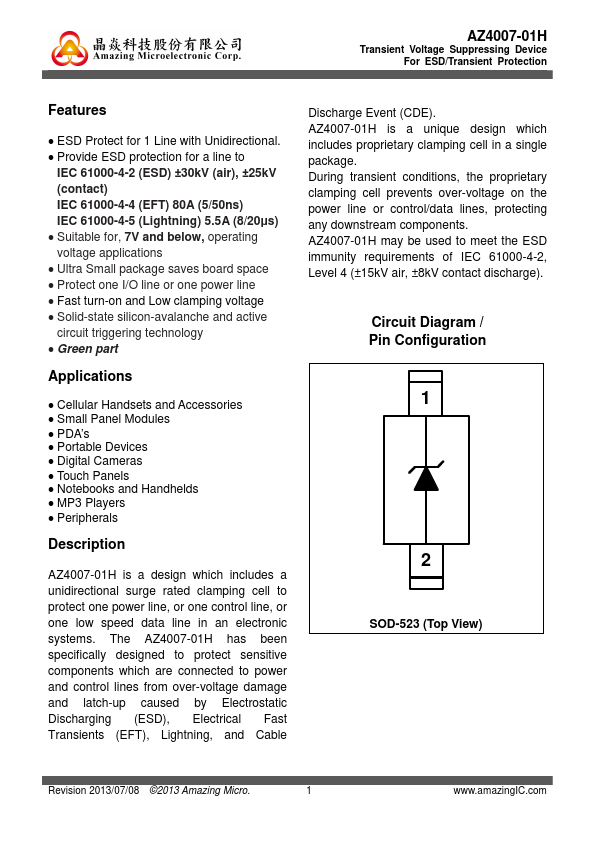

ESD Protect for 1 Line with Unidirectional. Provide ESD protection for a line to IEC 61000-4-2 (ESD) ±30kV (air), ±25kV (contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 5.5A (8/20µs) Suitable for, 7V and below, operating voltage applications Ultra Small package saves board space Protect one I/O line or one power line Fast turn-on and Low clamping voltage Solid-state silicon-avalanche and active circuit triggering technology Green part

APPLICATIONS

Cellular Handsets and Accessories Small Panel Modules PDA’s Portable Devices Digital Cameras Touch Panels Notebooks and Handhelds MP3 Players Peripherals

DESCRIPTION

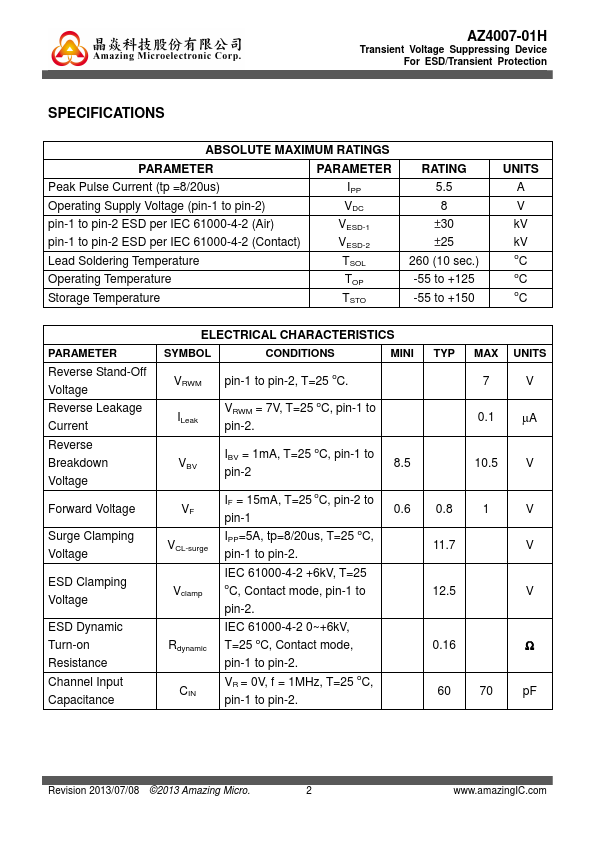

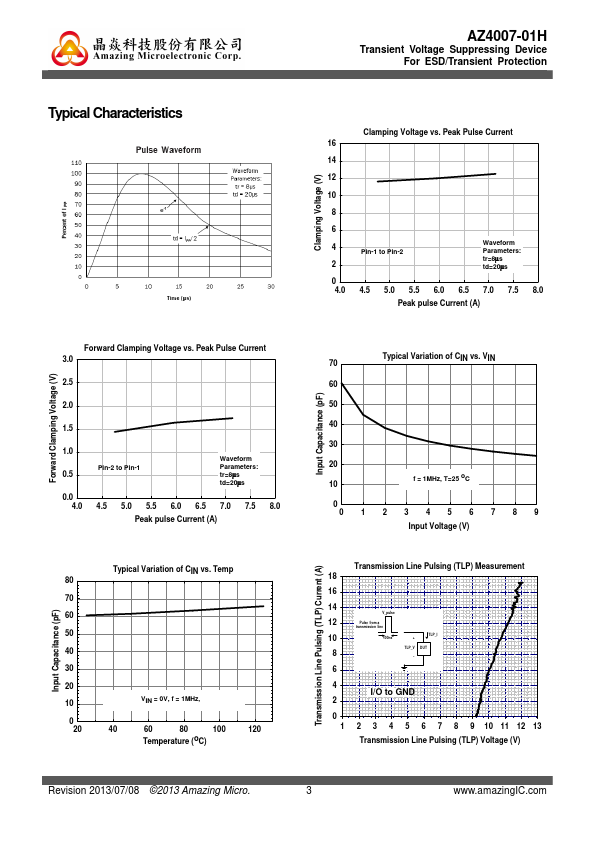

During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream components. AZ4007-01H may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge). Circuit Diagram / Pin Configuration 1 2 SOD-523 (Top View) Revision 2013/07/08 ©2013 Amazing Micro.
