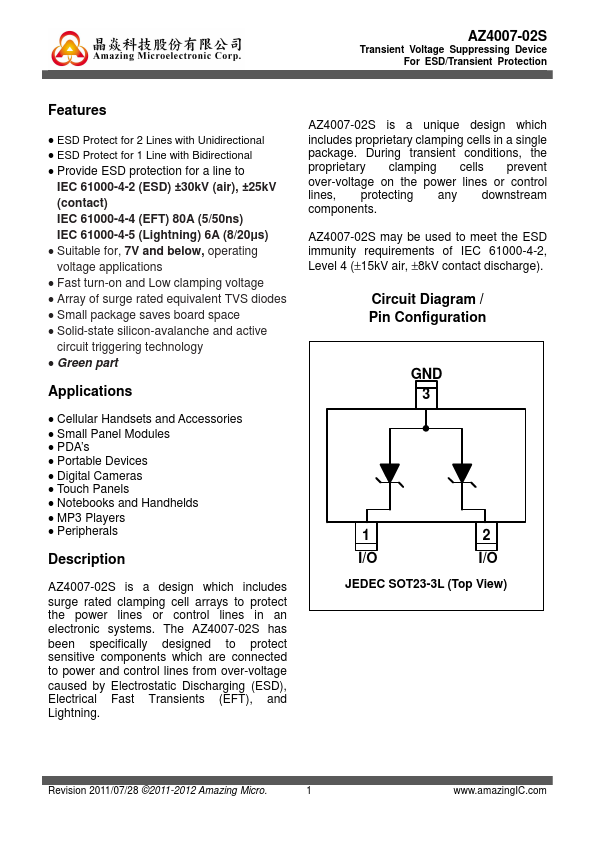

AZ4007-02S
Features
ESD Protect for 2 Lines with Unidirectional ESD Protect for 1 Line with Bidirectional Provide ESD protection for a line to IEC 61000-4-2 (ESD) ±30k V (air), ±25k V (contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 6A (8/20µs) Suitable for, 7V and below, operating voltage applications Fast turn-on and Low clamping voltage Array of surge rated equivalent TVS diodes Small package saves board space Solid-state silicon-avalanche and active circuit triggering technology Green part
Applications
Cellular Handsets and Accessories Small Panel Modules PDA’s Portable Devices Digital Cameras Touch Panels Notebooks and Handhelds MP3 Players Peripherals
Description
AZ4007-02S is a design which includes surge rated clamping cell arrays to protect the power lines or control lines in an electronic systems. The AZ4007-02S has been specifically designed to protect sensitive ponents which are connected to power and control lines from over-voltage caused by Electrostatic...
