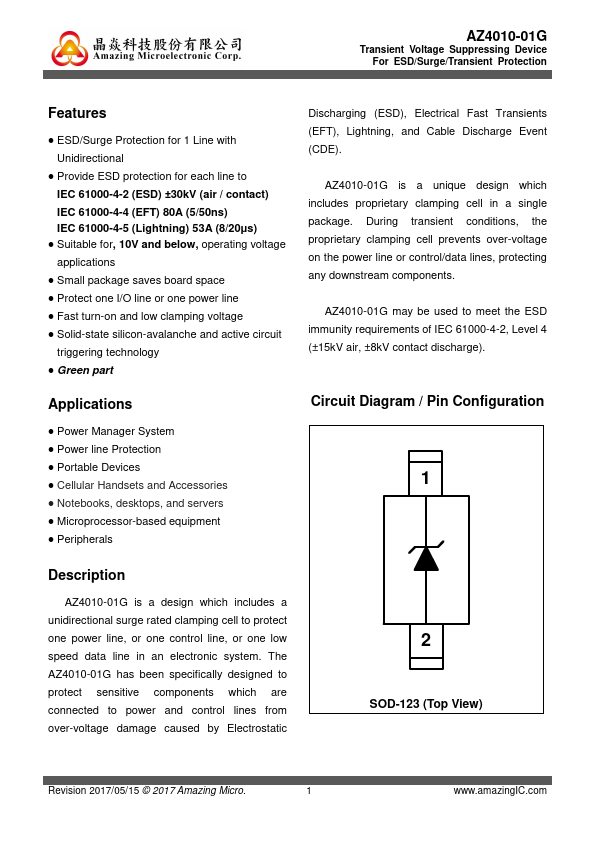

AZ4010-01G
Features
ESD/Surge Protection for 1 Line with Unidirectional Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±30k V (air / contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 53A (8/20µs) Suitable for, 10V and below, operating voltage applications Small package saves board space Protect one I/O line or one power line Fast turn-on and low clamping voltage Solid-state silicon-avalanche and active circuit triggering technology Green part
Discharging (ESD), Electrical Fast Transients (EFT), Lightning, and Cable Discharge Event (CDE).
AZ4010-01G is a unique design which includes proprietary clamping cell in a single package. During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream ponents.
AZ4010-01G may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15k V air, ±8k V contact discharge).
Applications
Power Manager System Power line Protection...
