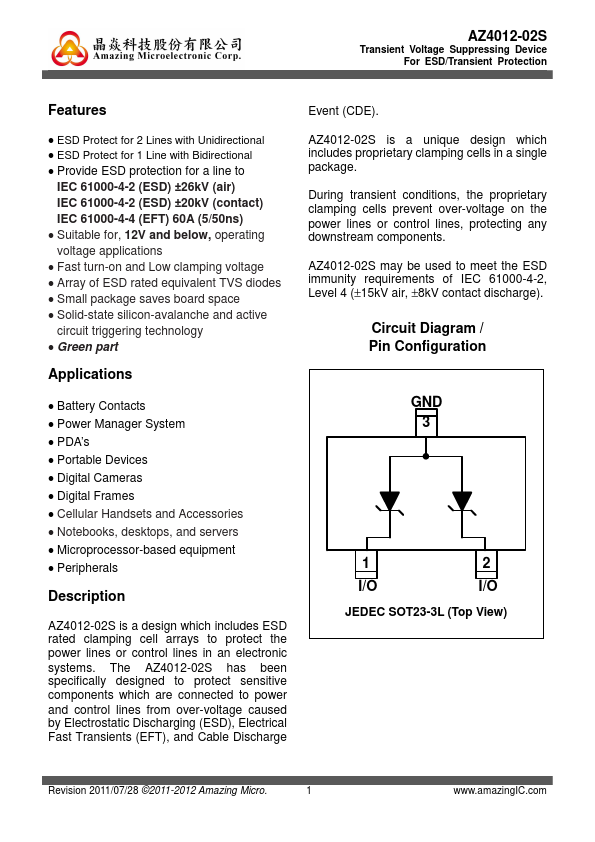

AZ4012-02S
Features
Event (CDE).
ESD Protect for 2 Lines with Unidirectional ESD Protect for 1 Line with Bidirectional Provide ESD protection for a line to IEC 61000-4-2 (ESD) ±26k V (air) IEC 61000-4-2 (ESD) ±20k V (contact) IEC 61000-4-4 (EFT) 60A (5/50ns) Suitable for, 12V and below, operating voltage applications Fast turn-on and Low clamping voltage Array of ESD rated equivalent TVS diodes Small package saves board space Solid-state silicon-avalanche and active circuit triggering technology Green part
AZ4012-02S is a unique design which includes proprietary clamping cells in a single package.
During transient conditions, the proprietary clamping cells prevent over-voltage on the power lines or control lines, protecting any downstream ponents.
AZ4012-02S may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15k V air, ±8k V contact discharge).
Circuit Diagram / Pin Configuration
Applications
Battery Contacts Power Manager System PDA’s Portable Devices Digital Cameras...
