| Part number | AZ4015-01G |
|---|---|
| Datasheet | AZ4015-01G-AmazingMicroelectronic.pdf |
| File Size | 220.20 KB |
| Manufacturer | Amazing Microelectronic |
| Description | Transient Voltage Suppressing Device |
|
|

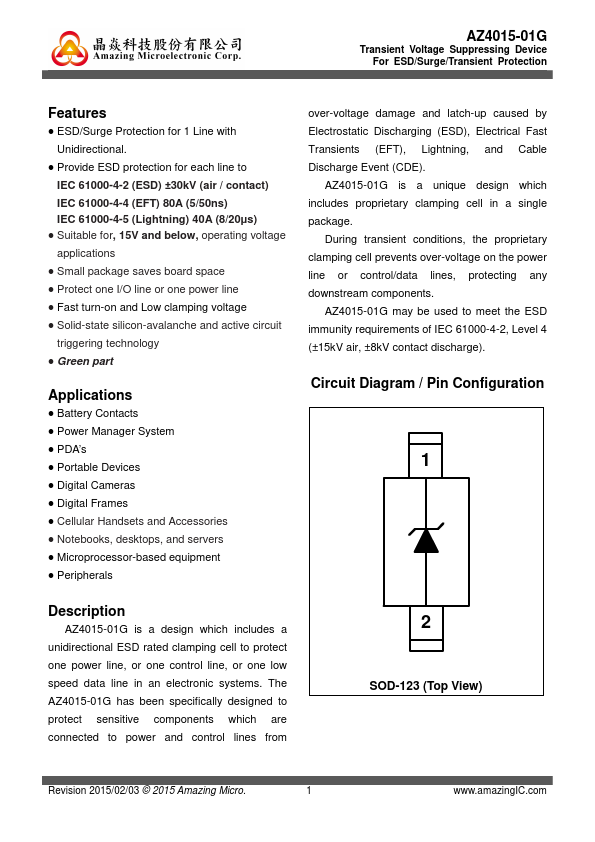

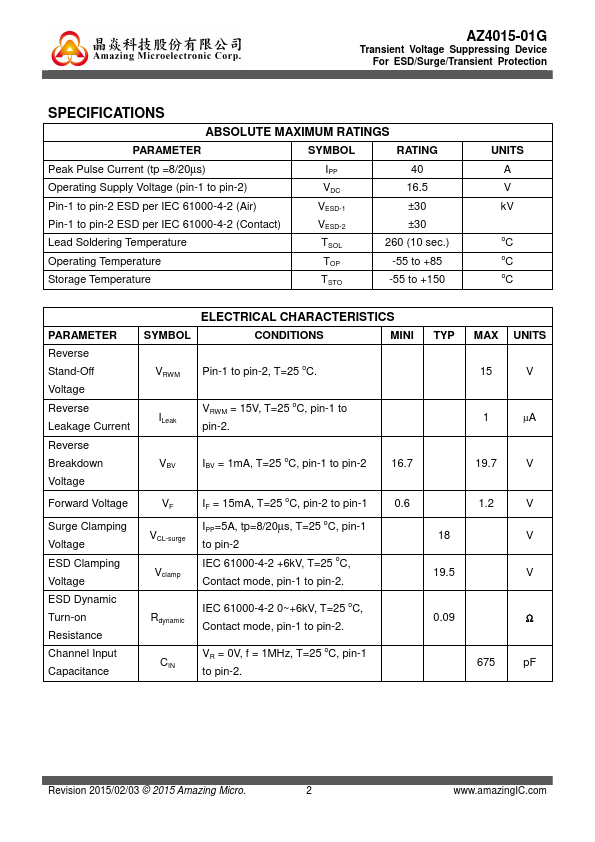

AZ4015-01G is a design which includes a unidirectional ESD rated clamping cell to protect one power line, or one control line, or one low speed data line in an electronic systems. The AZ4015-01G has been specifically designed to protect sensitive ponents which are connected to power and control lines from 2 SOD-123 (Top View) Revision 2015/02/03 © 2015 Amazing Micro. ILeak VRWM = 15V, T=25 oC, pin-1 to pin-2.
