Amazing Microelectronic AZKN1044T
AZKN1044T is a ±15kV IEC 61000-4-2 protected Controller Area Network (CAN) transceiver IC. It serves as an interface between a CAN protocol controller (MCU) and the physical two-wire CAN bus. This device operates at 5V power supply and is fully compliant with ISO 11898-2:2016 standard for CAN FD application.| Part No. | AZKN1044T |
|---|---|
| Datasheet | AZKN1044T Download |
| Manufacturer |  Amazing Microelectronic |
| Description | High-Speed CAN Transceiver with IEC 61000-4-2 contact ESD Protection |
| Buy | Stock & Price |

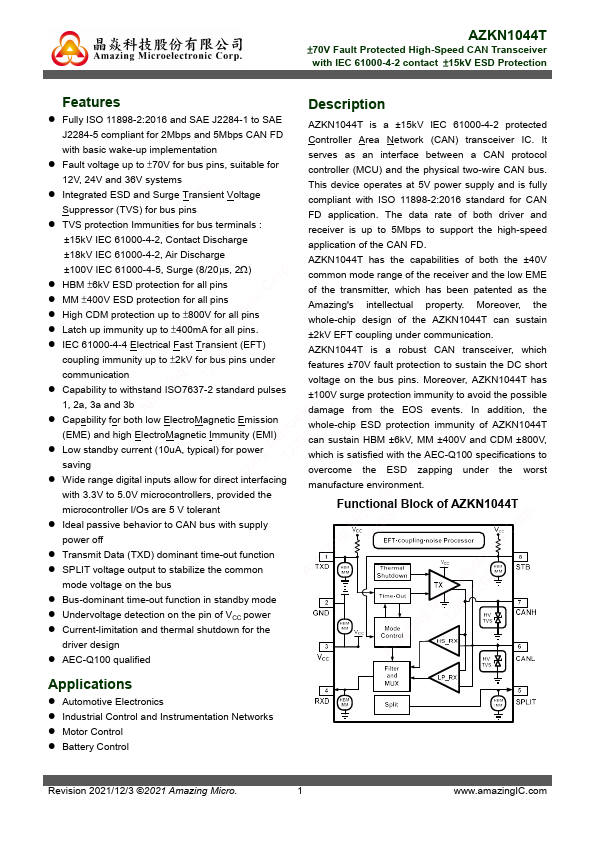

FEATURES
● Fully ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant for 2Mbps and 5Mbps CAN FD with basic wake-up implementation● Fault voltage up to ±70V for bus pins, suitable for 12V, 24V and 36V systems
● Integrated ESD and Surge Transient Voltage Suppressor (TVS) for bus pins
● TVS protection Immunities for bus terminals : ±15kV IEC 61000-4-2, Contact Discharge ±18kV IEC 61000-4-2, Air Discharge ±100V IEC 61000-4-5, Surge (8/20s, 2)
● HBM ±6kV ESD protection for all pins
● MM ±400V ESD protection for all pins
● High CDM protection up to ±800V for all pins
● Latch up immunity up to ±400mA for all pins.
● IEC 61000-4-4 Electrical Fast Transient (EFT) coupling immunity up to ±2kV for bus pins under communication
● Capability to withstand ISO7637-2 standard pulses 1, 2a, 3a and 3b
● Capability for both low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)
● Low standby current (10uA, typical) for power saving
● Wide range digital inputs allow for direct...
