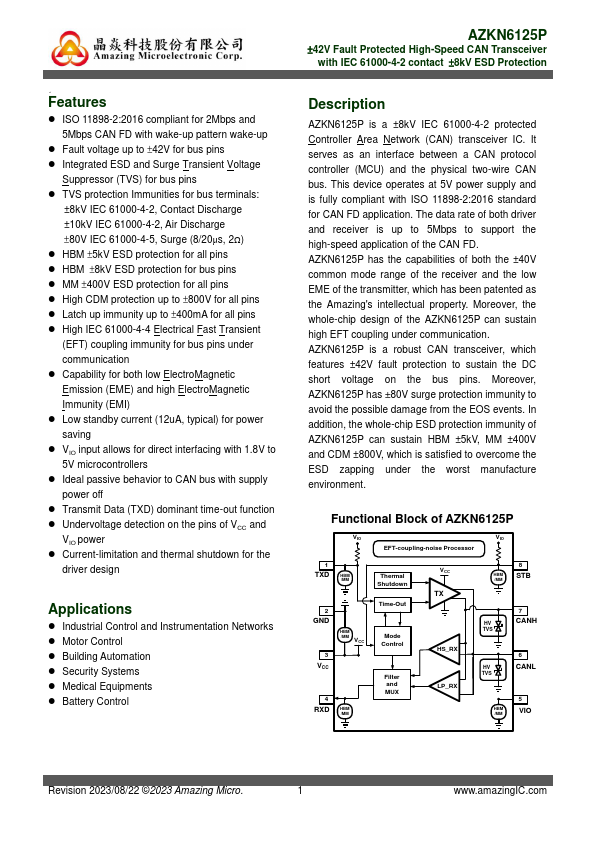

AZKN6125P
Features
- ISO 11898-2:2016 pliant for 2Mbps and 5Mbps CAN FD with wake-up pattern wake-up
- Fault voltage up to ±42V for bus pins
- Integrated ESD and Surge Transient Voltage
Suppressor (TVS) for bus pins
- TVS protection Immunities for bus terminals:
±8k V IEC 61000-4-2, Contact Discharge ±10k V IEC 61000-4-2, Air Discharge ±80V IEC 61000-4-5, Surge (8/20μs, 2Ω)
- HBM ±5k V ESD protection for all pins
- HBM ±8k V ESD protection for bus pins
- MM ±400V ESD protection for all pins
- High CDM protection up to ±800V for all pins
- Latch up immunity up to ±400m A for all pins
- High IEC 61000-4-4 Electrical Fast Transient (EFT) coupling immunity for bus pins under munication
- Capability for both low Electro Magnetic Emission (EME) and high Electro Magnetic Immunity (EMI)
- Low standby current (12u A, typical) for power saving
- VIO input allows for direct interfacing with 1.8V to 5V microcontrollers
- Ideal passive behavior to CAN bus with supply power off
- Transmit Data (TXD) dominant...
