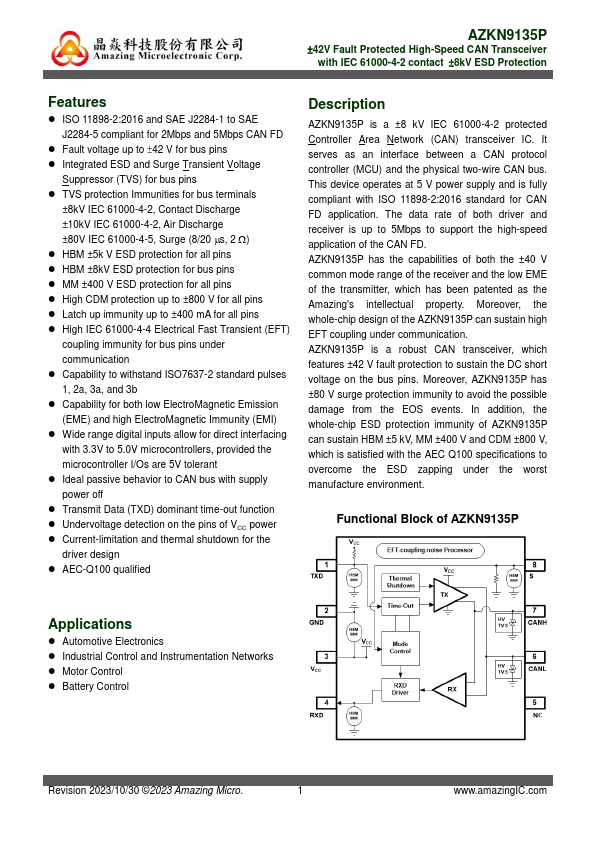

AZKN9135P Description
AZKN9135P is a ±8 kV IEC 61000-4-2 protected Controller Area Network (CAN) transceiver IC. It serves as an interface between a CAN protocol controller (MCU) and the physical two-wire CAN bus. This device operates at 5 V power supply and is fully pliant with ISO 11898-2:2016 standard for CAN FD application.
AZKN9135P Key Features
- Fault voltage up to ±42 V for bus pins
- Integrated ESD and Surge Transient Voltage
- TVS protection Immunities for bus terminals
- HBM ±5k V ESD protection for all pins
- HBM ±8kV ESD protection for bus pins
- MM ±400 V ESD protection for all pins
- High CDM protection up to ±800 V for all pins
- Latch up immunity up to ±400 mA for all pins
- High IEC 61000-4-4 Electrical Fast Transient (EFT) coupling immunity for bus pins under munication
- Capability to withstand ISO7637-2 standard pulses 1, 2a, 3a, and 3b
