Amazing Microelectronic AZKN9145P

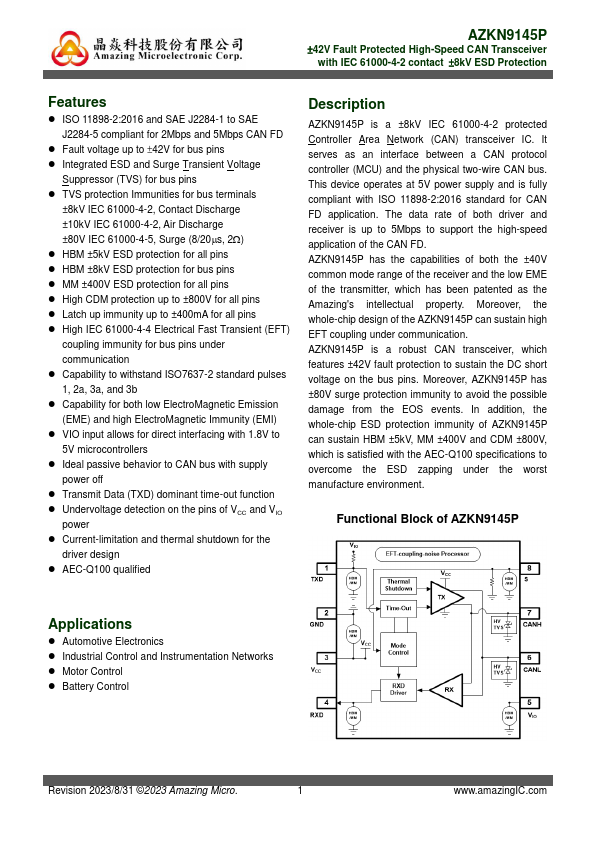

AZKN9145P is a ±8kV IEC 61000-4-2 protected Controller Area Network (CAN) transceiver IC. It serves as an interface between a CAN protocol controller (MCU) and the physical two-wire CAN bus. This device operates at 5V power supply and is fully compliant with ISO 11898-2:2016 standard for CAN FD application.| Part No. | AZKN9145P |
|---|---|
| Datasheet | AZKN9145P Download |
| Manufacturer |  Amazing Microelectronic |
| Description | Fault Protected High-Speed CAN Transceiver with IEC 61000-4-2 contact ESD Protection |
| Buy | Stock & Price |
FEATURES
● ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant for 2Mbps and 5Mbps CAN FD● Fault voltage up to ±42V for bus pins
● Integrated ESD and Surge Transient Voltage Suppressor (TVS) for bus pins
● TVS protection Immunities for bus terminals ±8kV IEC 61000-4-2, Contact Discharge ±10kV IEC 61000-4-2, Air Discharge ±80V IEC 61000-4-5, Surge (8/20s, 2)
● HBM ±5kV ESD protection for all pins
● HBM ±8kV ESD protection for bus pins
● MM ±400V ESD protection for all pins
● High CDM protection up to ±800V for all pins
● Latch up immunity up to ±400mA for all pins
● High IEC 61000-4-4 Electrical Fast Transient (EFT) coupling immunity for bus pins under communication
● Capability to withstand ISO7637-2 standard pulses 1, 2a, 3a, and 3b
● Capability for both low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)
● VIO input allows for direct interfacing with 1.8V to 5V microcontrollers
● Ideal passive behavior to CAN bus with supply power off
● Transmit Data (...
