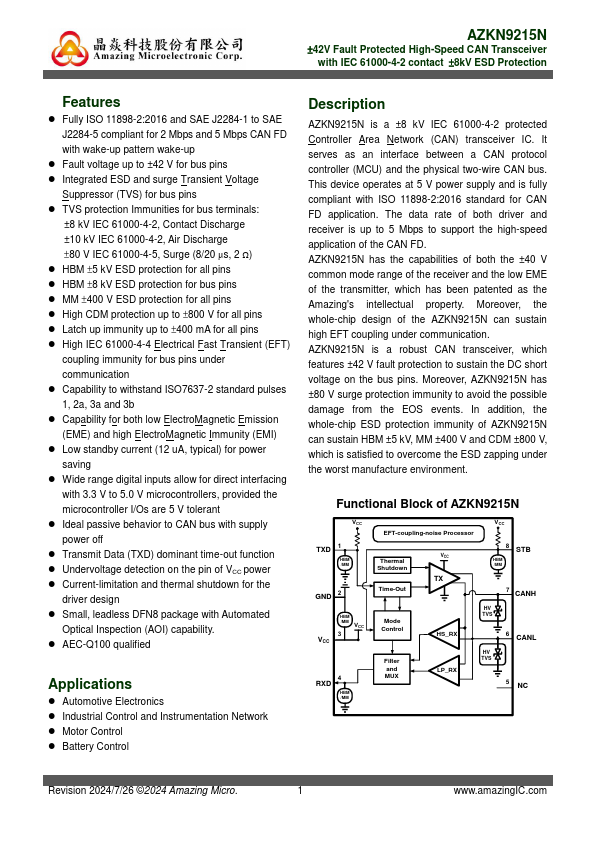

AZKN9215N
Features
- Fully ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 pliant for 2 Mbps and 5 Mbps CAN FD with wake-up pattern wake-up
- Fault voltage up to ±42 V for bus pins
- Integrated ESD and surge Transient Voltage
Suppressor (TVS) for bus pins
- TVS protection Immunities for bus terminals:
±8 k V IEC 61000-4-2, Contact Discharge ±10 k V IEC 61000-4-2, Air Discharge ±80 V IEC 61000-4-5, Surge (8/20 μs, 2 Ω)
- HBM ±5 k V ESD protection for all pins
- HBM ±8 k V ESD protection for bus pins
- MM ±400 V ESD protection for all pins
- High CDM protection up to ±800 V for all pins
- Latch up immunity up to ±400 m A for all pins
- High IEC 61000-4-4 Electrical Fast Transient (EFT) coupling immunity for bus pins under munication
- Capability to withstand ISO7637-2 standard pulses 1, 2a, 3a and 3b
- Capability for both low Electro Magnetic Emission (EME) and high Electro Magnetic Immunity (EMI)
- Low standby current (12 u A, typical) for power saving
- Wide range digital inputs allow for direct...
