Amazing Microelectronic AZM-LCD07-06F
The AZM-LCD07-06F is a 6-line monolithically and highly integrated EMI symmetrical I/O lowpass filter designed to suppress EMI noise in all systems subjected to electromagnetic interferences.| Part No. | AZM-LCD07-06F |
|---|---|
| Datasheet | AZM-LCD07-06F Download |
| Manufacturer |  Amazing Microelectronic |
| Description | 6-LINE EMI FILTER WITH ESD PROTECTOR |
| Buy | Stock & Price |

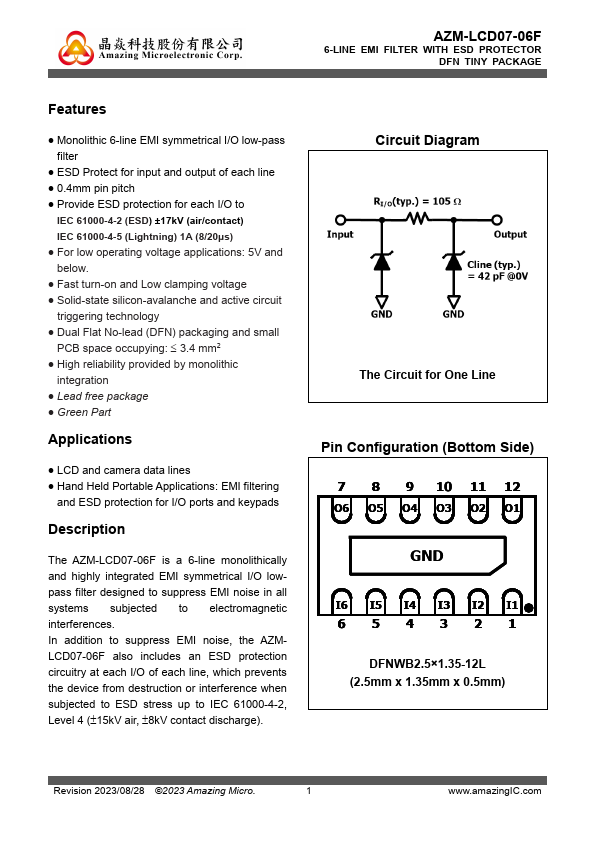

FEATURES
● Monolithic 6-line EMI symmetrical I/O low-pass filter● ESD Protect for input and output of each line
● 0.4mm pin pitch
● Provide ESD protection for each I/O to IEC 61000-4-2 (ESD) ±17kV (air/contact) IEC 61000-4-5 (Lightning) 1A (8/20μs)
● For low operating voltage applications: 5V and below.
● Fast turn-on and Low clamping voltage
● Solid-state silicon-avalanche and active circuit triggering technology
● Dual Flat No-lead (DFN) packaging and small PCB space occupying: ≤ 3.4 mm2
● High reliability provided by monolithic integration
● Lead free package
● Green Part
APPLICATIONS
● LCD and camera data lines● Hand Held Portable
APPLICATIONS
: EMI filtering and ESD protection for I/O ports and keypadsDESCRIPTION
In addition to suppress EMI noise, the AZMLCD07-06F also includes an ESD protection circuitry at each I/O of each line, which prevents the device from destruction or interference when subjected to ESD stress up to IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).
