Amazing Microelectronic AZRS1196T
AZRS1196T is an RS-232 transceiver that meets the EIA/TIA-232-F standards under supply power +3.0V to +5.5V. AZRS1196T is a 1-transmitter and 1-receiver device with a high-efficient charge pump circuit embedded. This high-efficient charge pump circuit with 0.1µF external capacitors provides the bipolar output to the transmitter.| Part No. | AZRS1196T |
|---|---|
| Datasheet | AZRS1196T Download |
| Manufacturer |  Amazing Microelectronic |
| Description | RS-232 1Tx/1Rx Transceiver |
| Buy | Stock & Price |
FEATURES
● Meet EIA/TIA-232-F standards from a +3.0V to +5.5V power supply● Guaranteed data rate 2Mbps under loading
● One Transmitter and One Receiver design
● AUTO-Powerdown function for power saving
● Latch-up free
● External Capacitor : 4 x 0.1µF
● Accepts 5V Logic Input under 3.3V supply
● Integrated ESD Transient Voltage Suppressor (TVS) in the Transceiver IC
● TVS protection Immunities for Bus Terminals: 8 kV IEC 61000-4-2 Contact Discharge 15kV IEC 61000-4-2 Air Discharge
APPLICATIONS
● Portable Computers● Battery-Powered Systems
● Production Data Acquisition (PDA) and Point of Sale (POS) terminal
● Routers and HUBs
● Peripherals and Printers
● Industrial Controlled Machine

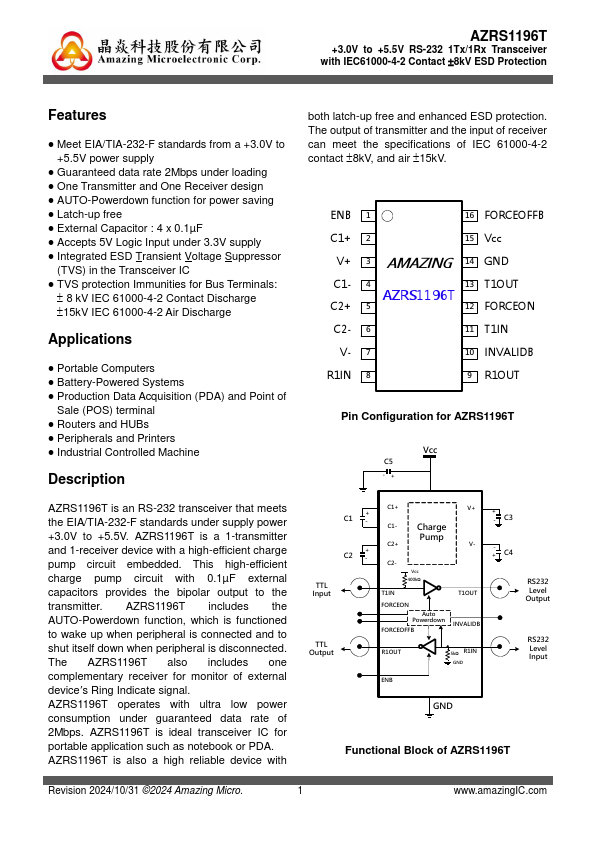

DESCRIPTION
+ - both latch-up free and enhanced ESD protection. The output of transmitter and the input of receiver can meet the specifications of IEC 61000-4-2 contact 8kV, and air 15kV. ENB 1 16 FORCEOFFB C1+ 2 15 Vcc V+ 3 AMAZING 14 GND C1- 4 13 T1OUT AZRS1196T C2+ 5 12 FORCEON C2- 6 11 T1IN V- 7 1...
