AZRS1296P Datasheet

Manufacturer: Amazing Microelectronic

Datasheet Details

Part number	AZRS1296P
Datasheet	AZRS1296P-AmazingMicroelectronic.pdf
File Size	534.30 KB
Manufacturer	Amazing Microelectronic
Description	RS-232 2Tx/2Rx Transceiver with IEC61000-4-2 Contact ESD Protection

AZRS1296P Overview

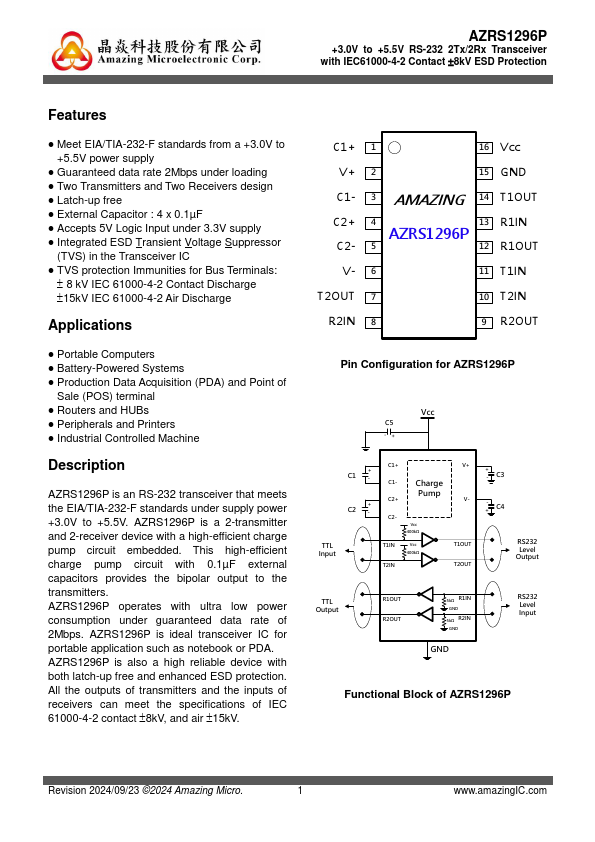

AZRS1296P is an RS-232 transceiver that meets the EIA/TIA-232-F standards under supply power +3.0V to +5.5V. AZRS1296P is a 2-transmitter and 2-receiver device with a high-efficient charge pump circuit embedded. This high-efficient charge pump circuit with 0.1µF external capacitors provides the bipolar output to the transmitters.

AZRS1296P Key Features

Meet EIA/TIA-232-F standards from a +3.0V to +5.5V power supply
Guaranteed data rate 2Mbps under loading
Two Transmitters and Two Receivers design
Latch-up free
External Capacitor : 4 x 0.1µF
Accepts 5V Logic Input under 3.3V supply
Integrated ESD Transient Voltage Suppressor
TVS protection Immunities for Bus Terminals
