AZRS1396K Datasheet

Manufacturer: Amazing Microelectronic

Datasheet Details

Part number	AZRS1396K
Datasheet	AZRS1396K-AmazingMicroelectronic.pdf
File Size	579.33 KB
Manufacturer	Amazing Microelectronic
Description	RS-232 3Tx/5Rx Transceiver with IEC61000-4-2 Contact ESD Protection

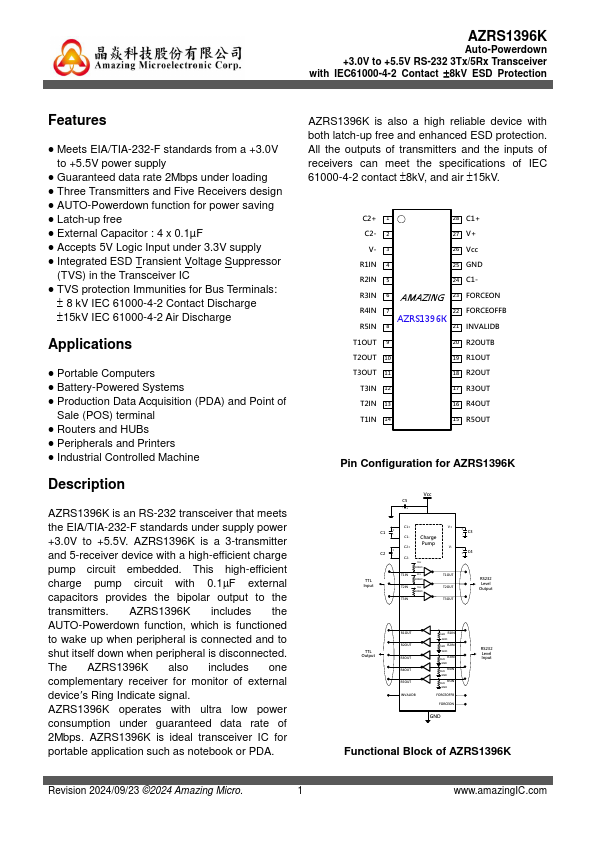

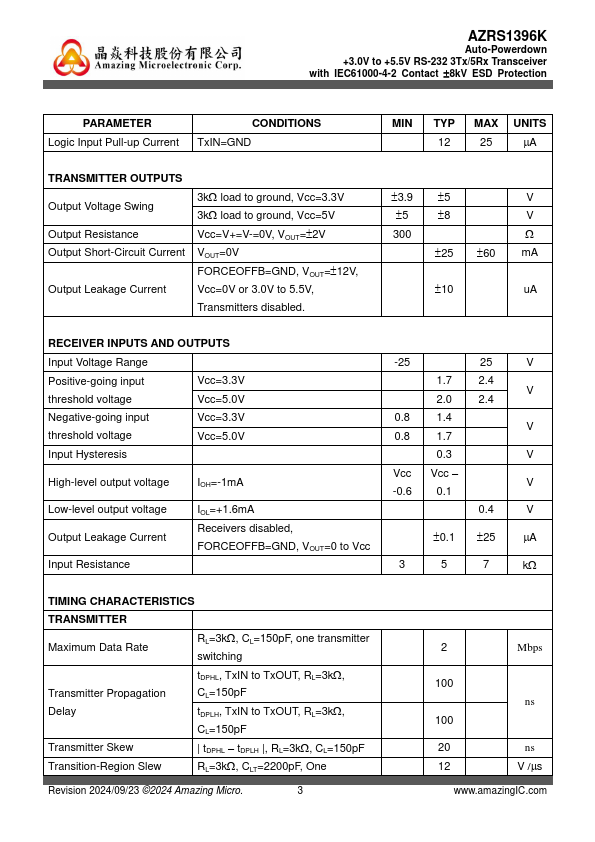

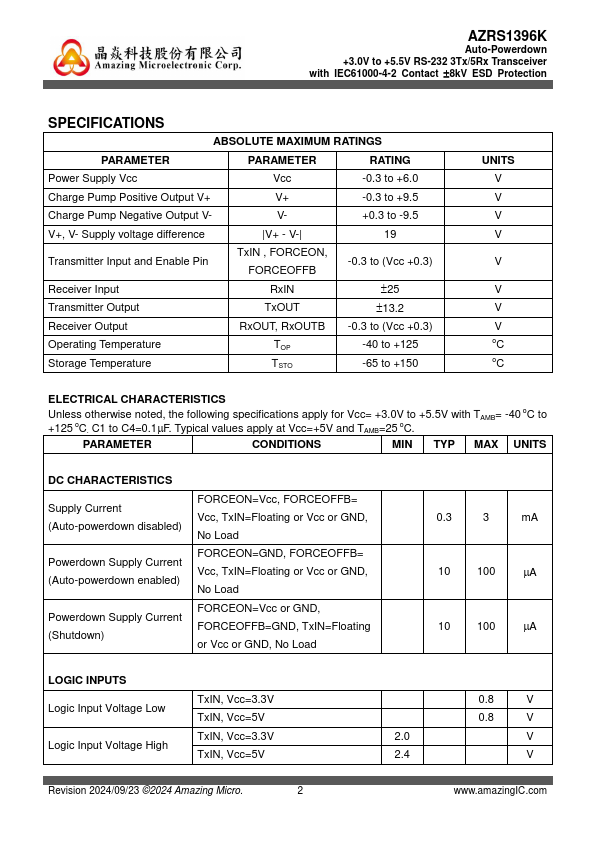

AZRS1396K Overview

AZRS1396K is an RS-232 transceiver that meets the EIA/TIA-232-F standards under supply power +3.0V to +5.5V. AZRS1396K is a 3-transmitter and 5-receiver device with a high-efficient charge pump circuit embedded. This high-efficient charge pump circuit with 0.1F external capacitors provides the bipolar output to the transmitters.

AZRS1396K Key Features

Meets EIA/TIA-232-F standards from a +3.0V to +5.5V power supply
Guaranteed data rate 2Mbps under loading
Three Transmitters and Five Receivers design
AUTO-Powerdown function for power saving
Latch-up free
External Capacitor : 4 x 0.1µF
Accepts 5V Logic Input under 3.3V supply
Integrated ESD Transient Voltage Suppressor
TVS protection Immunities for Bus Terminals
