AZRS2396N Datasheet

Manufacturer: Amazing Microelectronic

AZRS2396N datasheet preview

Datasheet Details

Part number	AZRS2396N
Datasheet	AZRS2396N-AmazingMicroelectronic.pdf
File Size	373.47 KB
Manufacturer	Amazing Microelectronic
Description	RS-232 3Tx/5Rx Transceiver with IEC61000-4-2 Contact ESD Protection

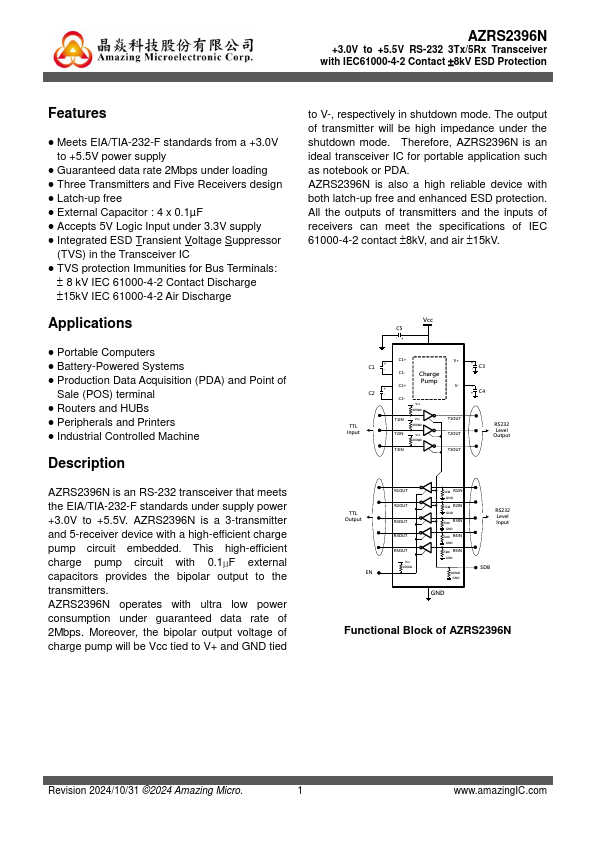

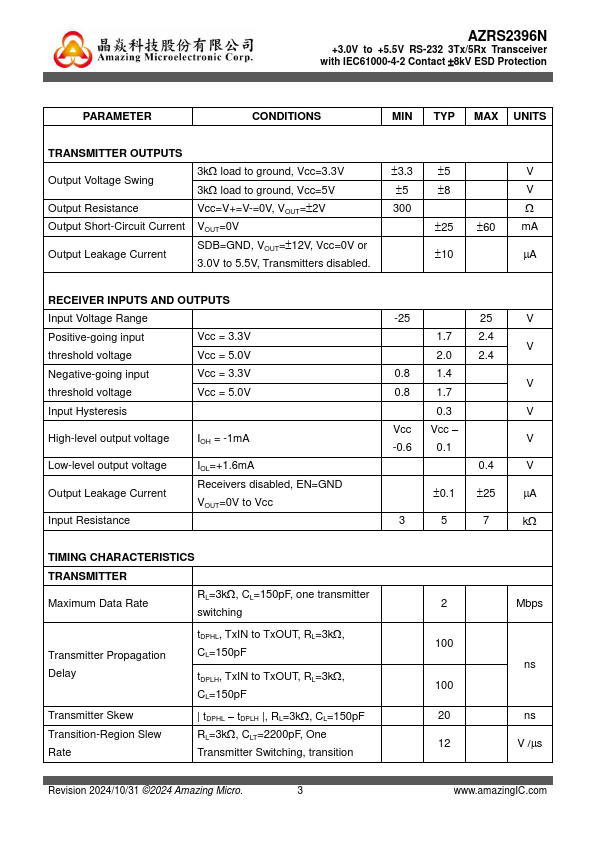

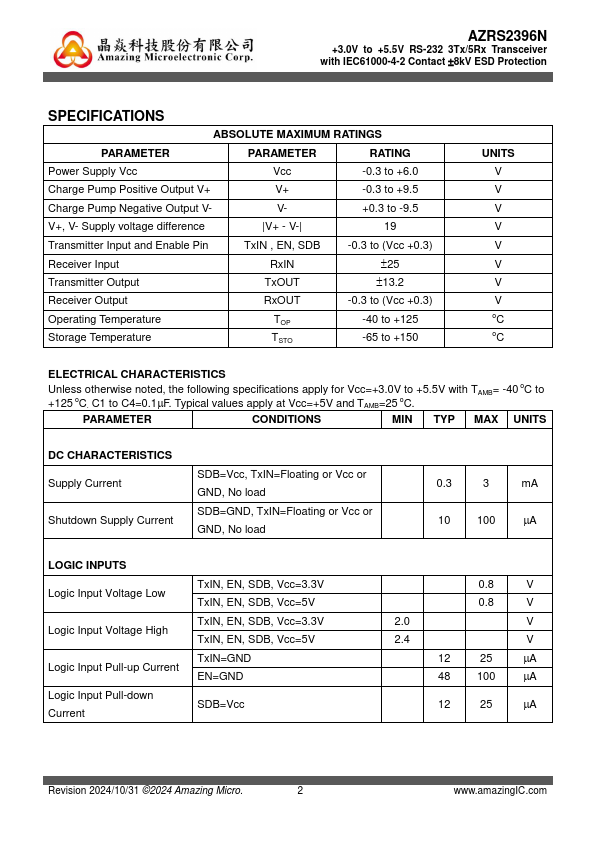

AZRS2396N Overview

to V-, respectively in shutdown mode. The output of transmitter will be high impedance under the shutdown mode. Therefore, AZRS2396N is an ideal transceiver IC for portable application such as notebook or PDA.

AZRS2396N Key Features

Meets EIA/TIA-232-F standards from a +3.0V to +5.5V power supply
Guaranteed data rate 2Mbps under loading
Three Transmitters and Five Receivers design
Latch-up free
External Capacitor : 4 x 0.1µF
Accepts 5V Logic Input under 3.3V supply
Integrated ESD Transient Voltage Suppressor
TVS protection Immunities for Bus Terminals
