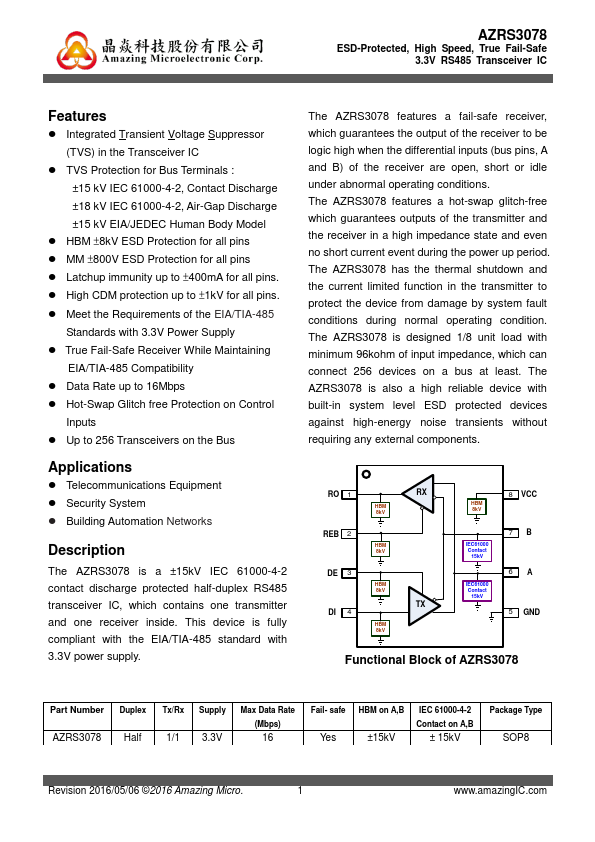

AZRS3078
Features
- Integrated Transient Voltage Suppressor (TVS) in the Transceiver IC
- TVS Protection for Bus Terminals : ±15 k V IEC 61000-4-2, Contact Discharge ±18 k V IEC 61000-4-2, Air-Gap Discharge ±15 k V EIA/JEDEC Human Body Model
- HBM ±8k V ESD Protection for all pins
- MM ±800V ESD Protection for all pins
- Latchup immunity up to ±400m A for all pins.
- High CDM protection up to ±1k V for all pins.
- Meet the Requirements of the EIA/TIA-485
Standards with 3.3V Power Supply
- True Fail-Safe Receiver While Maintaining
EIA/TIA-485 patibility
- Data Rate up to 16Mbps
- Hot-Swap Glitch free Protection on Control
Inputs
- Up to 256 Transceivers on the Bus
Applications
- Telemunications Equipment
- Security System
- Building Automation Networks
Description
The AZRS3078 is a ±15k V IEC 61000-4-2 contact discharge protected half-duplex RS485 transceiver IC, which contains one transmitter and one receiver inside. This device is fully pliant with the EIA/TIA-485 standard with 3.3V power...
