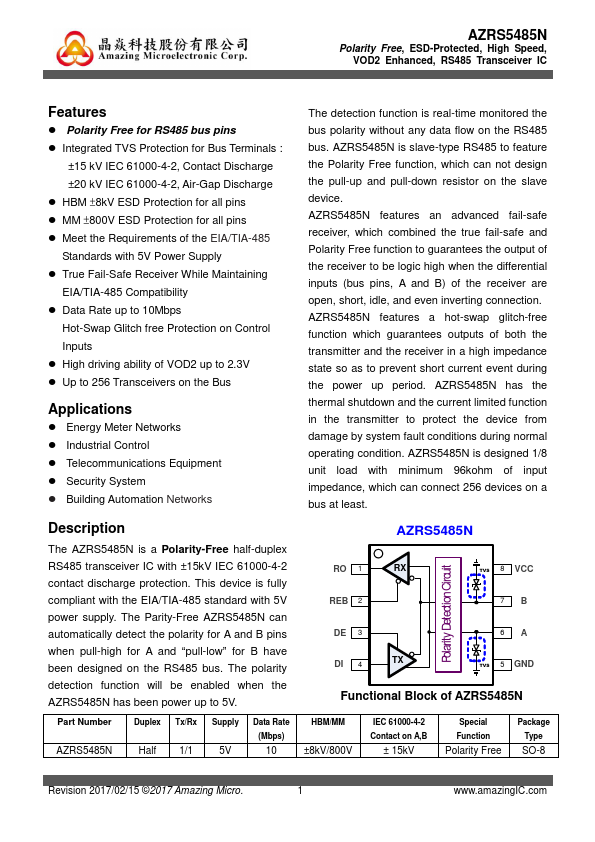

AZRS5485N
Features
- Polarity Free for RS485 bus pins
- Integrated TVS Protection for Bus Terminals :
±15 k V IEC 61000-4-2, Contact Discharge ±20 k V IEC 61000-4-2, Air-Gap Discharge
- HBM ±8k V ESD Protection for all pins
- MM ±800V ESD Protection for all pins
- Meet the Requirements of the EIA/TIA-485 Standards with 5V Power Supply
- True Fail-Safe Receiver While Maintaining EIA/TIA-485 patibility
- Data Rate up to 10Mbps Hot-Swap Glitch free Protection on Control Inputs
- High driving ability of VOD2 up to 2.3V
- Up to 256 Transceivers on the Bus
Applications
- Energy Meter Networks
- Industrial Control
- Telemunications Equipment
- Security System
- Building Automation Networks
The detection function is real-time monitored the bus polarity without any data flow on the RS485 bus. AZRS5485N is slave-type RS485 to feature the Polarity Free function, which can not design the pull-up and pull-down resistor on the slave device. AZRS5485N features an advanced fail-safe receiver, which bined the...
